Beskrivelse

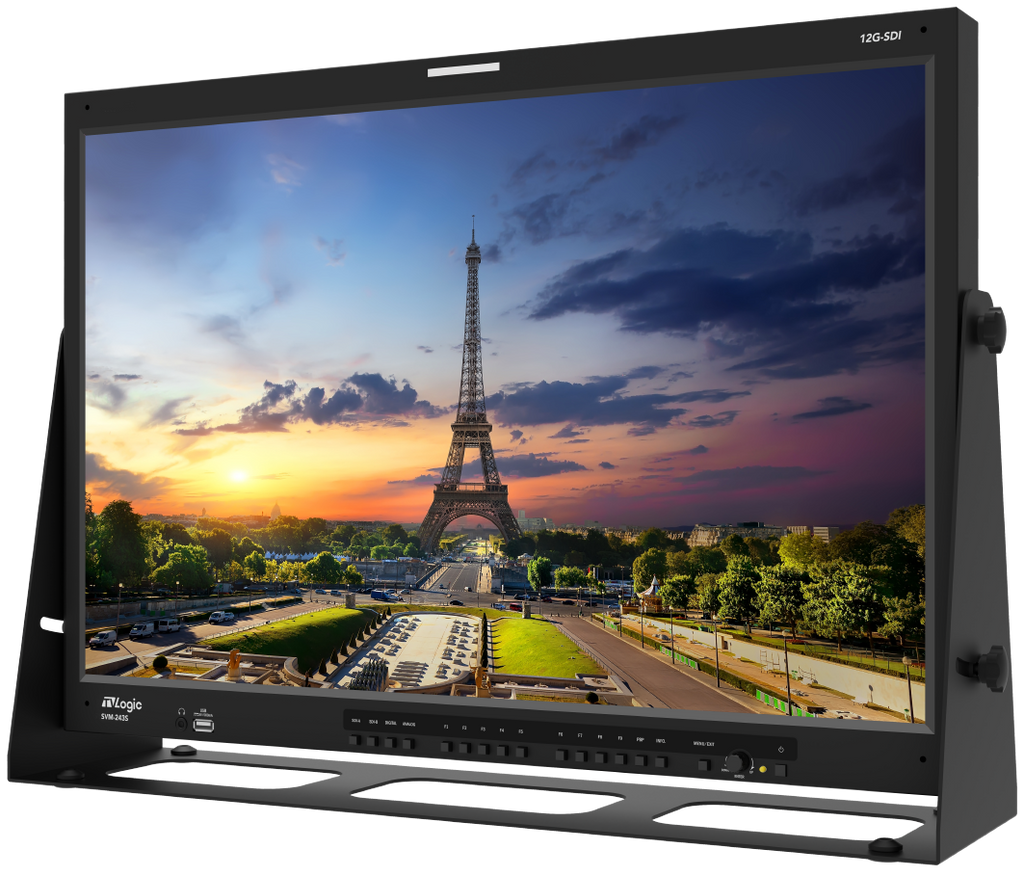

SVM-243S : 24" 12G-SDI with FHD LCD Monitor

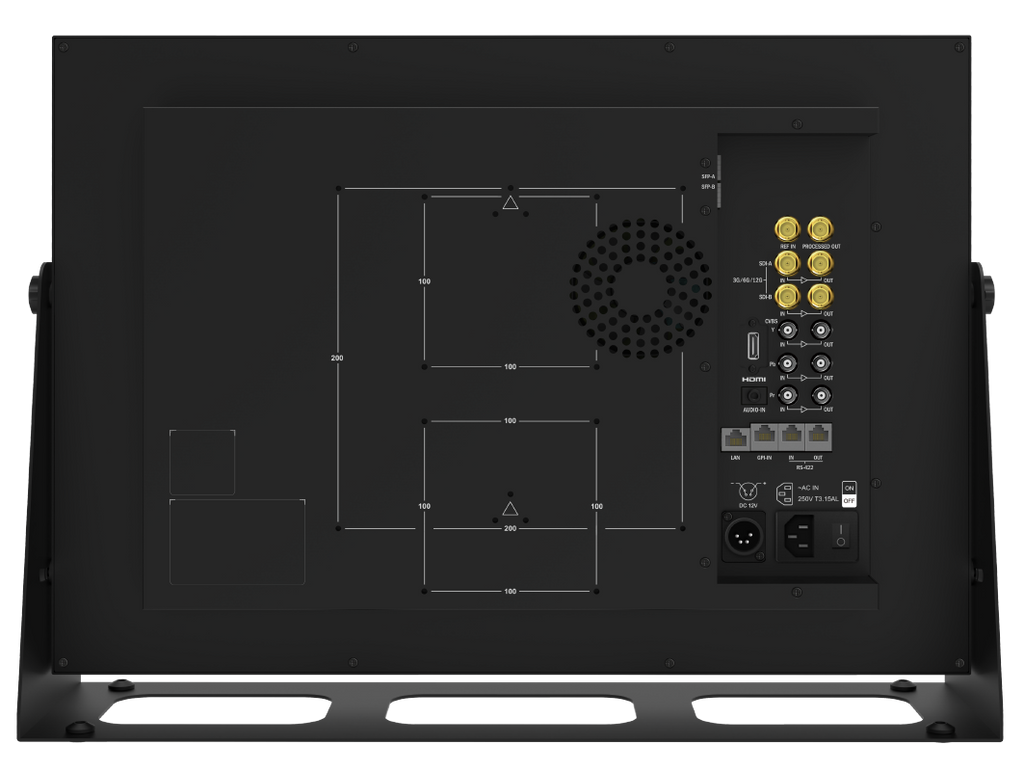

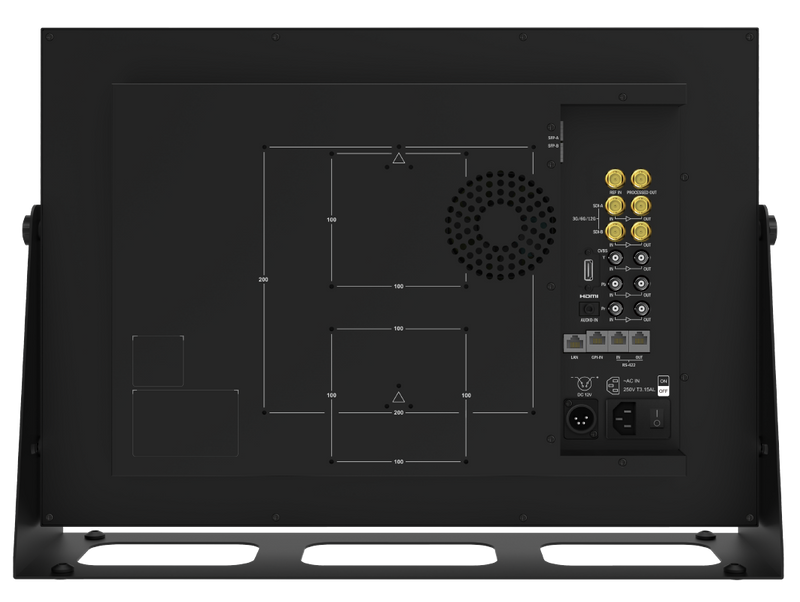

SVM series incorporates:
12G-SDI Input(x2)
12G-SDI Output(x2)
Reference(External Sync) Input
HDMI 1.4 Input
SFP Input(x2)
Processed Monitor Output
12G-SDI Input(x2)
12G-SDI Output(x2)
Reference(External Sync) Input
HDMI 1.4 Input
SFP Input(x2)
Processed Monitor Output

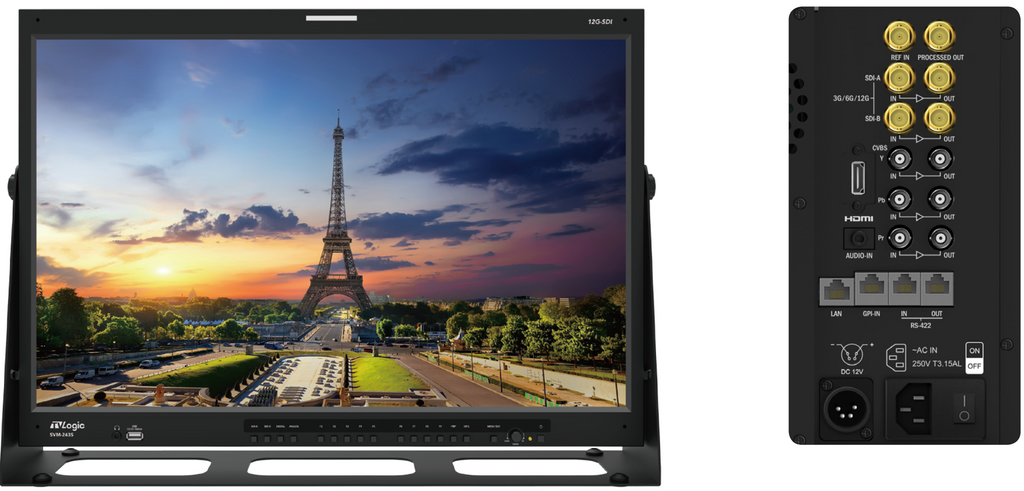

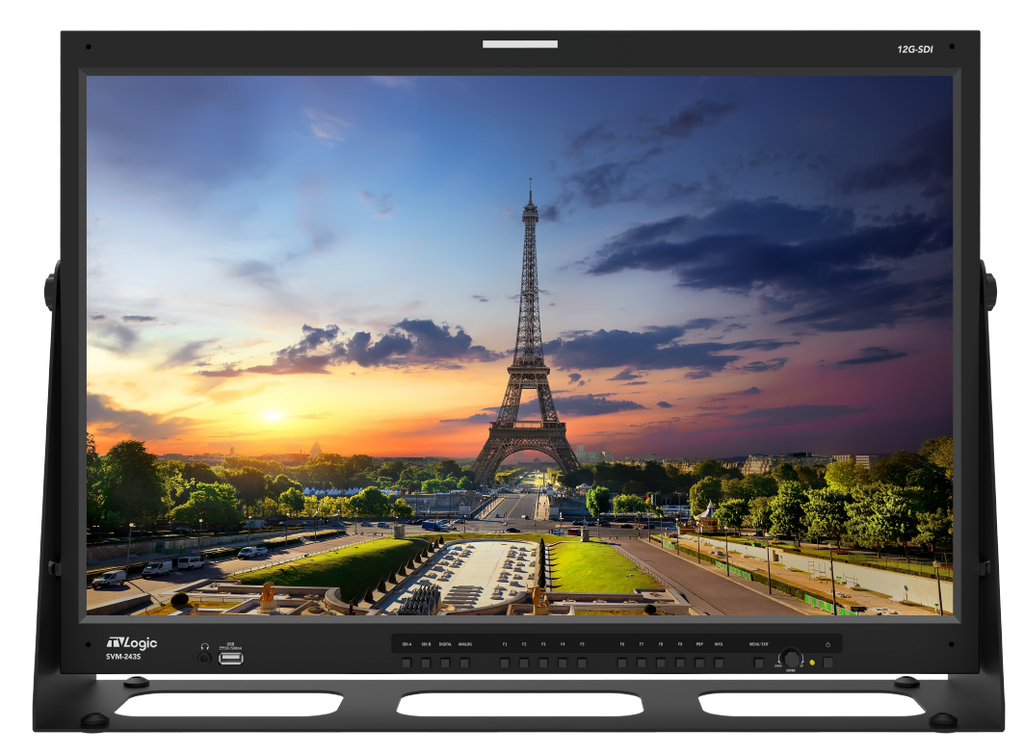

24" 12G-SDI with FHD LCD Monitor
These new generation of monitors feature wide viewing angle IPS panel, various HDR EOTFs, wide color gamut of DCI-P3 coverage 98%, 10bit 1.073 Billion Colors, Accurate Color Reproduction by 3D LUT.
The SVM series monitors support the high-performance functions such as HDR EOTF, 12G-SDI Picture-by-Picture dispaly, Custom 3D LUT import, 12G-SDI Input to 3G-SDI Processed Output, LUT-applied output, Waveform, Vector Scope, Audio Phase Meter, Firmware Update by Ethernet, and many more, which make the SVM monitors ideal for live production, versatile monitoring in the studio and field location, edit suite, post production.

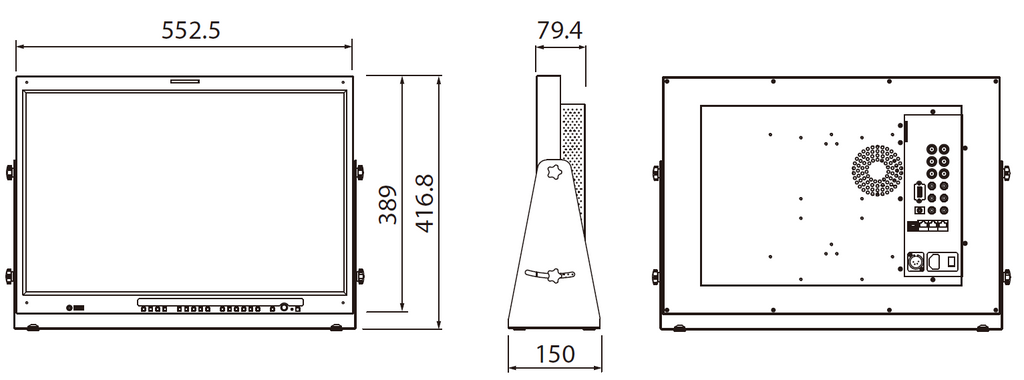

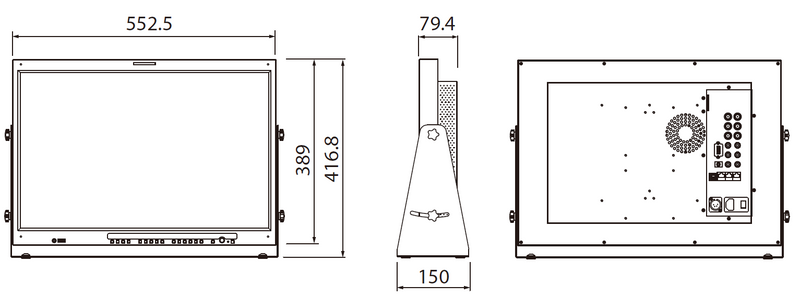

Main Body Dimensions
Main Body 552.5 x 389 x 79.4 (mm) / 21.75 x 15.31 x 3.12 (inch)
With Stand 586.1 x 416.8 x 150 (mm) / 23.07 x 16.4 x 5.90 (inch)
Weight 10kg / 22.04lbs
Product Highlights
• 2 x 12G-SDI Input and Loopout
• 12G-SDI Input to 3G-SDI Downscale Output
• Processed Monitor Output
• Picture-by-Picture Display
• HDR (PQ, HLG, S-LOG3)
• Various Color Spaces (BT.709, DCI-P3, BT.2020, S-GAMUT3)
• Custom 3D LUT Import by USB Flash Drive
• Auto Detection of SDI Payload ID
• Image Capture & Overlay / Blue/Mono Only
• Waveform (YCbCr, RGB) / Vector Scope / Histogram
• Audio Level Meter / Audio Phase Meter
• Fast Mode / Focus Assist / Marker
• Closed Caption in Multi Languages (CC-608, CC-708, OP47)
• Remote Control & FW Update via Ethernet
• Timecode Display / Dynamic UMD / Tally
