Beskrivelse
› Portable 3G/HD/SD-SDI to DVI Converter
› 1 SDI input, 1 DVI output, and 1 SDI loop
› SDI audio output via 3.5mm socket
› Power/input/output status indicator
› Pole-tap 6-18V DC power input
› Heavy duty aluminium housing

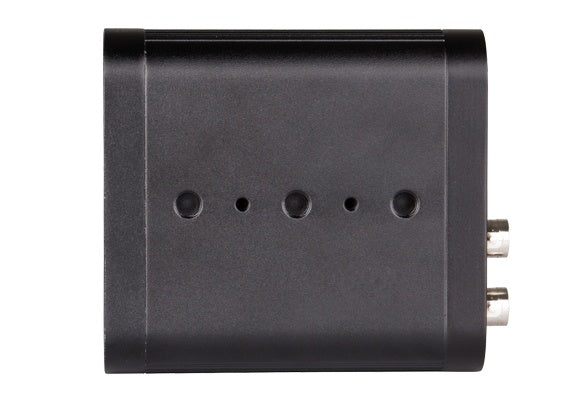

› Bottom screw threads for installing

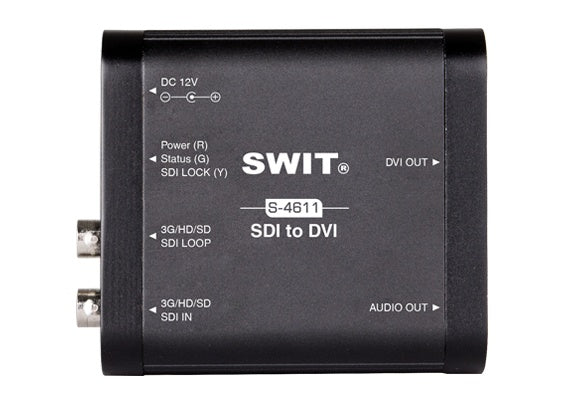

Portable Mini Converter
SDI to DVI, (DVI-D, 18+1)
S-4611 is a mini converter for SDI to DVI conversion, (DVI-D, 18+1 connector), which can be widely used to display up to 3Gb/s broadcast SDI video on DVI monitor, televisions, LED board or projectors.
Input and Output
S-4611 offers:
1× 3G/HD/SD-SDI input
1× 3G/HD/SD-SDI loop output (Reclocked)
1× DVI-D output
1× 3.5mm audio output
(The SDI to DVI supports the same format con- version only.)
Embedded Audio output
Via 3.5mm socket
The SDI embedded audio ch-1 & ch-2 can be converted to analog audio and output via 3.5mm headphone socket, supports 48kHz sample rate.
Status Indicators
Power / Input / Output
S-4611 provides 3 LED indictors, to check if the power is connected, and if the input/output signal is delivered.
Power Supply
Pole-tap DC input
The mini converter is powered by pole-tap DC socket. The package includes an AC-DC power adaptor, and you can also connect DC cable from 6-18V batteries.
Heavy Duty Housing
The S-4611 mini converter adopts unibody aluminium alloy housing, strong for field using and protects the BNC connectors effectively.
