Beskrivelse
› Portable Audio to SDI Embedder
› 3G/HD/SD-SDI supported
› Embed audio to any 2 channels of SDI first 8-ch positions
› AES/EBU audio input and embed
› 6.35mm balanced audio input and embed
› 2x SDI output with new embedded audio
› Power/input/output status indicator
› Pole-tap 6-18V DC power input
› Heavy duty aluminium housing
› Bottom screw threads for installing
Portable Mini Converter
SDI audio Embedder

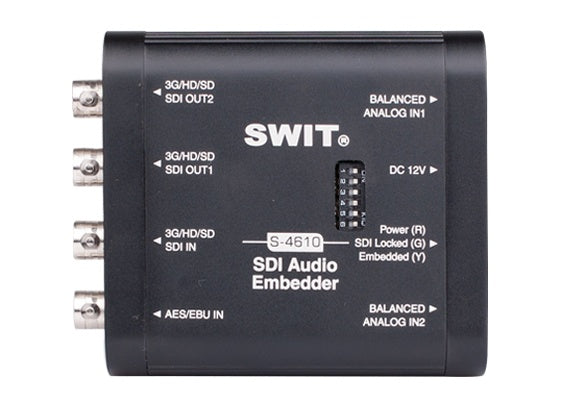

S-4610 is a portable mini converter of SDI audio embedder, supports digital audio or analog audio to embed, and SDI up to 3Gb/s.
It’s widely used in broadcast field production and professional audio/video conversion and transmission.

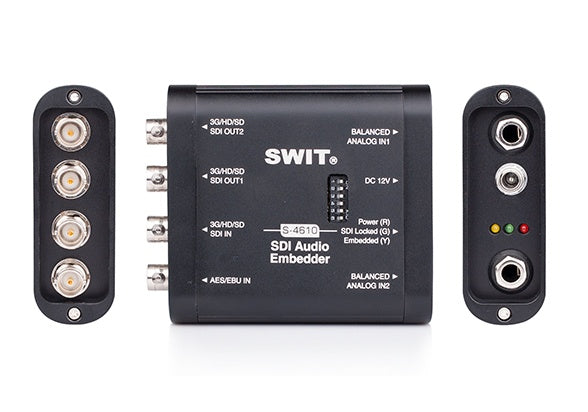

Input and Output
S-4610 provides:
1x 3G/HD/SD-SDI input
1x AES/EBU digital audio input (2-ch)
2x 6.35mm analog audio input (balanced)
2x New embedded 3G/HD/SD-SDI output
*If both AES/EBU audio and analog audio is connected, only AES/EBU audio can be embed-ded
De-embed Channel Selection
By 6 switchers
S-4610 can embed 2-ch audio to any 2 positions of SDI first 8 audio channels.
User can select the channel number to be embedded by the 6 switchers on the front panel of the product.

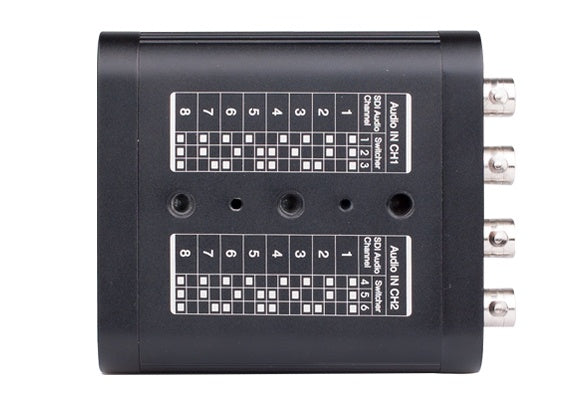

And on the rear side, S-4610 provides the description of the 6 switchers for reference.
Status Indicators
Power / SDI / Embedder
S-4610 provides 3 LED indictors, to check if the power is connected, if the SDI input is recognized, and if new embedded SDI outputs.
Power Supply
Pole-tap DC input
The mini converter is powered by pole-tap DC socket.
The package includes an AC-DC power adaptor, and you can also connect DC cable from 6-18V batteries.
Heavy Duty Housing
The S-4610 mini converter adopts unibody aluminium alloy housing, strong for field using and protects the audio/video connectors effectively.
Product specs/manual:
See all Swit Product (click for PDF)
