Supports up to 2048 x 1080 Resolution
16:9 Aspect Ratio
450 cd/m² Brightness
1000:1 Contrast Ratio
170° Horizontal/Vertical Viewing
SDI, HDMI, CVBS Inputs & Outputs
Analog Audio Input & Output
Sony V-Mount Battery Plate
he 9" Full HD DCI 2K Waveform LCD Monitor from SWIT is an IPS display that supports video at resolutions of up to 2048 x 1080. It features an aspect ratio of 16:9, a 450 cd/m2 brightness, a contrast ratio of 1000:1, and supports 170° horizontal and vertical viewing.

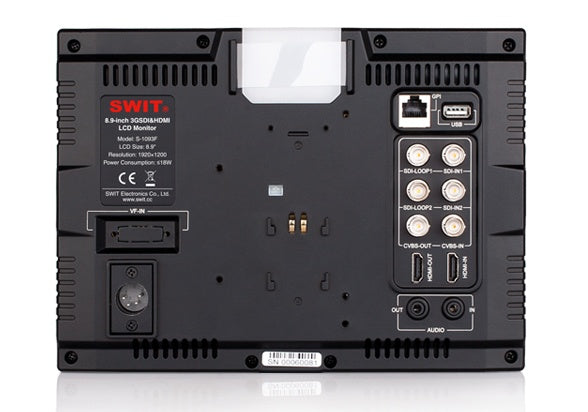

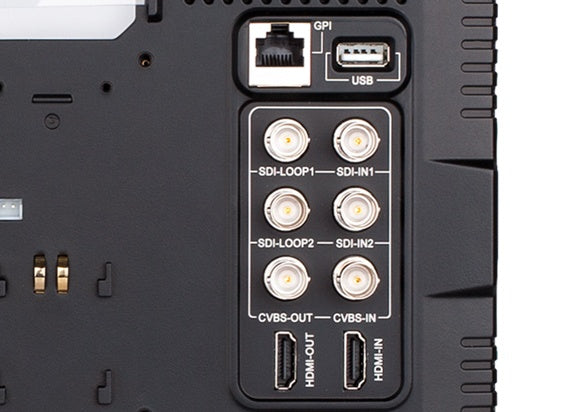

The monitor offers BNC 2K/3G/HD/SD-SDI, BNC composite, and HDMI inputs and outputs as well as a 3.5mm audio input and output. It provides broadcast technical reference patterns—waveform, vectorscope, histogram, and up to 16-ch audio meters with alert. Moreover, peaking focus assist, false color, R/G/B/Mono, H/V delay, UMD, AFD, and scale markers are useful functions in broadcast and studio monitoring. Firmware upgrade is done via a USB port; an RJ45 port provides tally light control.
A Sony V-mount battery plate is included as well as a cold shoe/screw articulating arm trestle, a sun hood, a 4-pin XLR power adapter, a U-shape desktop bracket, a D-Tap to 4-pin XLR DC cable, and a carrying case.
LCD Protective Glass
This monitor is overlaid with a glass that protects the screen against scratches and braking.
Video Analysis Assistant Pattern

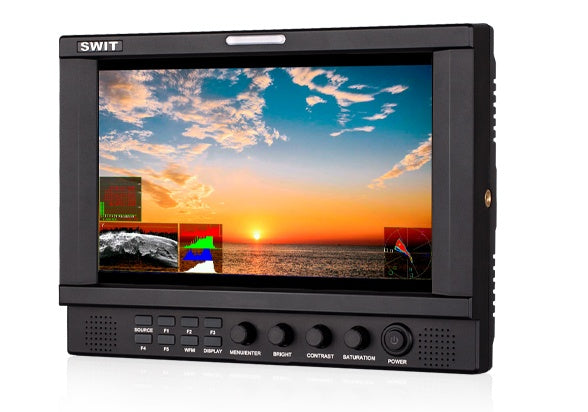

Supports video analysis assistant patterns including Waveform (Y/Pb/Pr/R/G/B), Vectorscope, and Histogram (R/G/B/Y) to convert the digital video quality info (Luma, Color, Saturation) to patterns. The patterns can be switched on/off individually and you can select display position (up/down/left/right), size, color, and translucence.
Embedded Audio Monitoring
Supports 16-channel SDI and eight-channel HDMI embedded audio meters display with marks and audio abnormal alert info. You can also select any two-channel audio to output via 3.5mm socket or speakers. The audio meter pattern position can be selected from one of four corners, and you can select to display only two channels, eight channels, and full 16 channels. Also, scale markers, alert info, and translucent of the audio meter pattern are selectable.
UMD and Text-Tally Display
Supports UMD and Text-Tally display of TSL 3.1/4.0 protocol, with 1-126 TSL address selection, and maximum eight letters displayed. The UMD/TALLY signal inputs via RJ45 (RS-485) port on the rear panel of the monitor.
This monitor features a variety of image controls including Peaking, R/G/B/Mono Only, Zebra Stripes, False Color, Timecode, H/V Delay, AFD, and Scale Markers.
USB Firmware Upgrade
The monitor provides a standard USB port on the rear panel, for firmware upgrade. You can download the latest firmware file to a USB stick and directly insert into the monitor to upgrade without a PC connection.
Multiple Power Sources
The monitor provides a 4-pin XLR socket of 6.5-17 VDC power input and can be fixed on a V-mount, Gold mount, or DV battery plate. A Sony V-mount battery plate is included.
3-Color TALLY Light
There are front and rear TALLY lights of red, green, and yellow colors. You can define the pins of RJ45 port to control the TALLY lights.
For outdoor using, apply the included sun hood on the monitor. The sun hood can be easily installed via the left and right screw threads, or directly by hook-and-loop.
SWIT S-1093F Specs
Panel Type IPS-Type LCD
Display Size 9.0" / 22.9 cm
Aspect Ratio 16:9
Viewing Angle Horizontal: 170°
Maximum Brightness 450 cd/m2
Contrast Ratio 1000:1
Bit Depth / Color Support 8-Bit (16.7 Million Colors)
Pixels Per Inch (ppi) 252 ppi
Image Controls False Color, H/V Delay, Histogram, RGB Parade, Vectorscope, Waveform
Video 2 x BNC (3G-SDI/HD-SDI/SD-SDI) Input
2 x BNC (3G-SDI/HD-SDI/SD-SDI) Loop Output
1 x BNC (Composite) Input
1 x BNC (Composite) Loop Output
1 x HDMI Type A Input
1 x HDMI Type A Loop Output
Embedded Audio HDMI: 16-Channel
Audio I/O 1 x 1/8" / 3.5 mm Input
1 x 1/8" / 3.5 mm Output
Built-In Speaker 2
Power I/O 1 x XLR 4-Pin (17 VDC) Input
Other I/O 1 x USB Type-A 2.0
1 x RJ45 (RS-485)
Card Slot None
Video Format SDI
DCI 2K: 60/59.94/50/30/29.97/25/24/23.98
DC Input Power 6.5 to 17 VDC
Battery Type 1 x L-Series, V-Mount, Gold Mount, BP-U, SSL (Interchangeable Mount)
Power Consumption 18 W (Maximum)
Operating Temperature 32 to 104°F / 0 to 40°C
Operating Humidity 10 to 90%
Storage Temperature 5 to 140°F / -15 to 60°C
Storage Humidity 10 to 90%
Dimensions 9.5 x 7 x 2" / 241 x 178 x 50 mm
Weight 33.86 oz / 960 g
Warranty Length Limited 2-Year Warranty
