› Standard DMX512 console with isolater
› 24x channel sliders, 6x submaster, 1x master
› Up to 4 units serial connection to 96 channels
› LCD display DMX values of each channel
› Flash control buttons for each slider
› 19-inch rack mountable

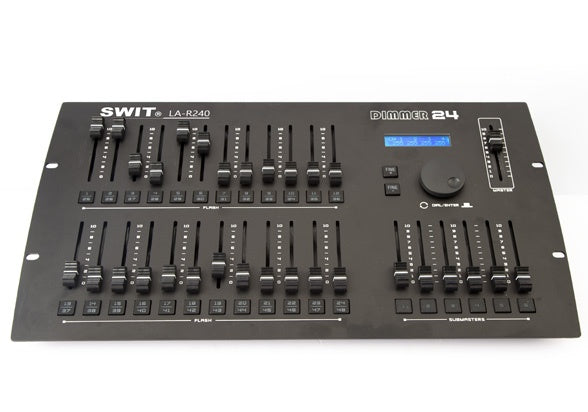

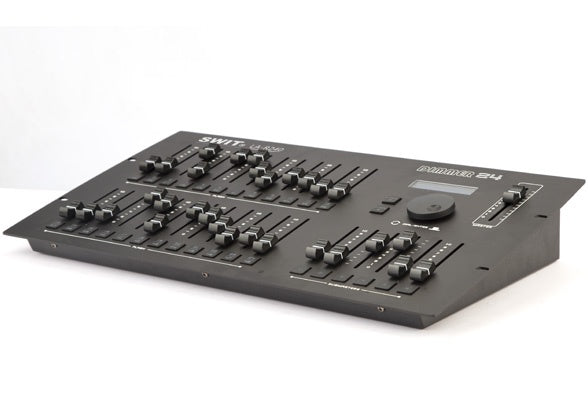

24-ch DMX Console
LA-R240 is a Zero-basis operatable standard DMX512 light console of 24 channel sliders, for broadcast studio and stage.

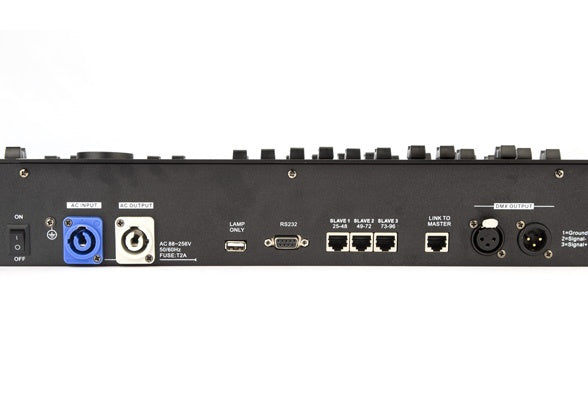

LA-R240 supports PowerCON AC 88-256V 50/60Hz input and loop output, RS232 remote control, RJ45 serial link ports and DMX sockets of both 3-pin male and female.
Submaster and Master Control
LA-R240 provides 6x Submaster sliders to group any of the 24 channels, and a Master slider to control all connected lights. The LCD displays exact values of every DMX channel, and has FINE +/- buttons to fine adjust slide values.
Serial Connection to Max 96-ch
You can connect up tp 4x LA-R240 by RJ45 cables, to expand DMX channels to Max 96. The Master unit is in charge of DMX 1-24, and the Slave units are DMX 25-48, 49-72 and 73-96.
DMX 3-pin XLR Female x1; Male x1
Serial connection 4 units, Max 96-ch
Power PowerCON AC 88-256V 50/60Hz IN x1; LOOPx1
