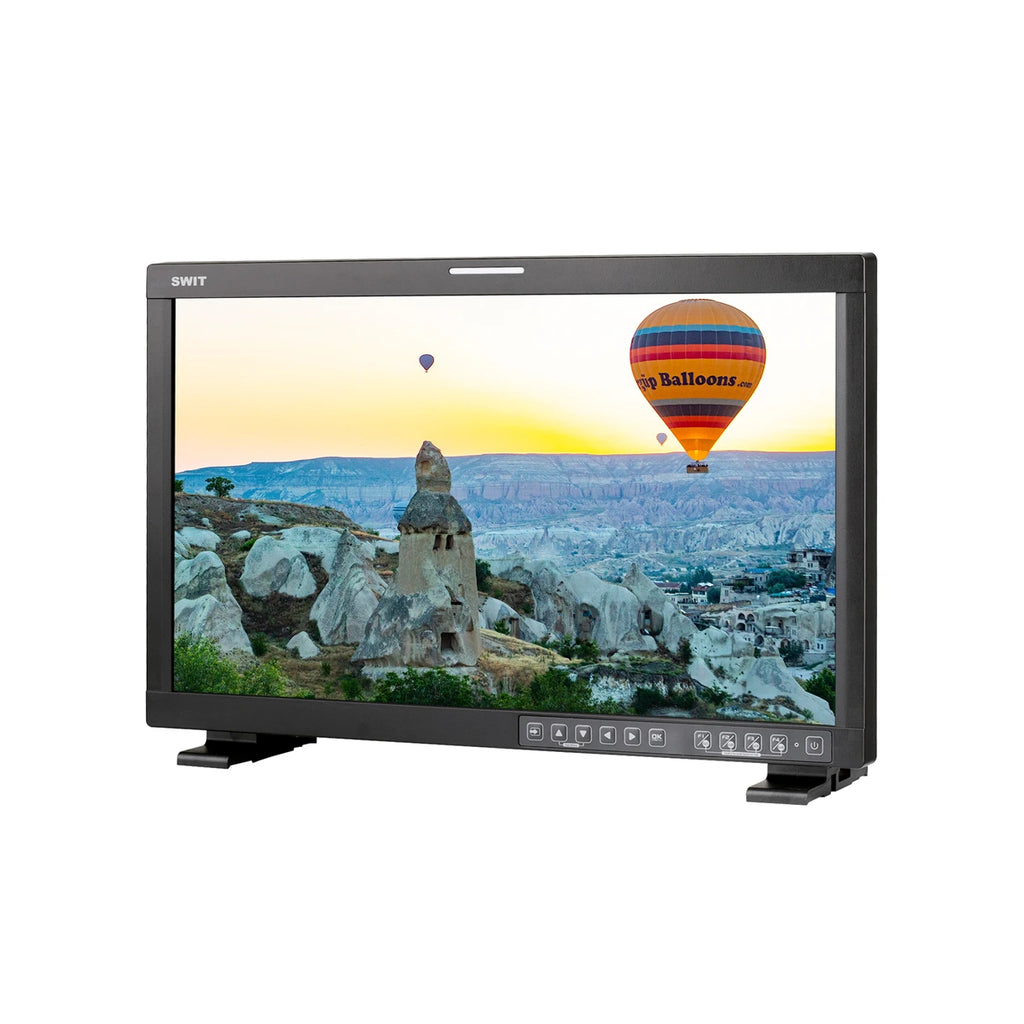

21.5-inch, 1920×1080, 8-bit LCD, 12-bit process
› 1000nits high bright
› 3G/HD/SD-SDI, HDMI, CVBS monitoring
› HDR: HLG/BT.2100 & SMPTE ST 2084/Dolby vision PQ
› Built-in multi cameras De-log LUTs and DIT LUTs upload by USB
› Waveform / Vector / Histogram / 16-ch Audio meters / Timecode
› Peaking / Focus assist / Exposure assist / Zebra / Blue only
› Anamorphic de-squeeze / Multiple markers
› Portable, light weight and C-stand setup
Beskrivelse
Product specs/manual:
See all Swit Product (click for PDF)
[Continues below the image↓]
Final note
Thanks a lot for visiting our webshop – it really means something to us.
Just a quick reminder: we’re not just an online store.
We host workshops, training sessions, product events and stay in close contact with our users.
If you can’t visit our physical showroom, the next best thing is to create a free customer profile – that way, you’ll still benefit from the same insider advantages and support.
🔗 Create your free profile here
And if you're looking for an easy overview of the full Swit line-up:
You can view right here ↓
Specifikationer
|
Size |
21.5 inches |
|
Display area |
476.64×268.11mm |
|
Resolution |
1920×1080 |
|
Aspect ratio |
16:9 |
|
Brightness |
1000cd/m2 |
|
Contrast |
1000:1 |
|
Color |
16.77 million colors |
|
Viewing angle |
Horizontal: 178°; Vertical: 178° |

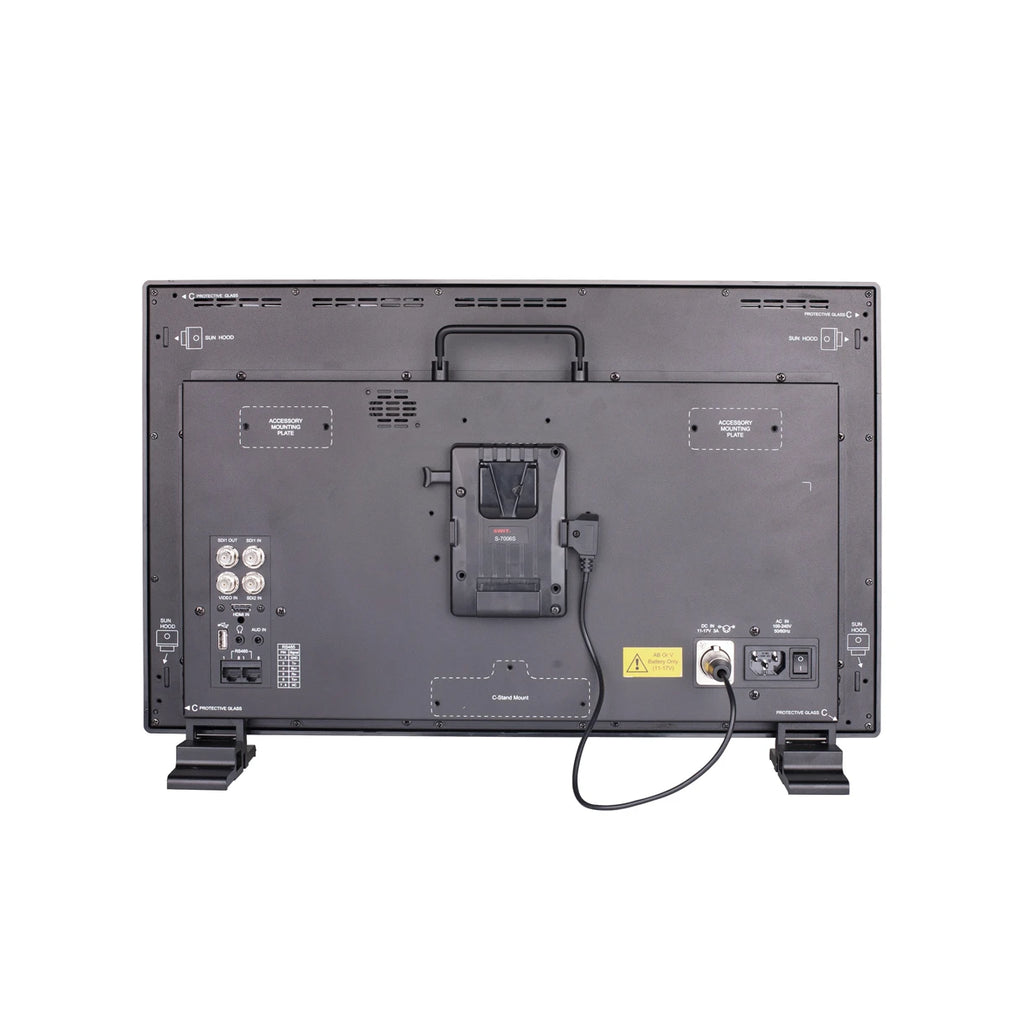

Input
|
BNC ×2 |
3G/HD/SD-SDI input |
|
BNC ×1 |
CVBS input |
|
HDMI ×1 |
HDMI 1.3 input |
|
3.5mm ×1 |
Analog audio input |
|
USB ×1 |
User LUTs upload and Firmware upgrade |
|
RS485 ×1 |
TSL 3.1/4.0 input |
Output
|
BNC ×1 |
3G/HD/SD-SDI loop output |
|
3.5mm ×1 |
SDI, HDMI embedded audio and analog output |
|
RS485 ×1 |
TSL 3.1/4.0 output |
Video Format
|
SDI |
1080p (60 / 59.94 / 50) |
| 1080i (60 / 59.94 / 50) | |
| 1080p (30 / 29.97 / 25 / 24 / 23.98) | |
| 1035i (60 / 59.94) | |
| 1080psf (30 / 29.97 / 25 / 24 / 23.98) | |
| 720p (60 / 59.94 / 50) | |
| 480i (59.94) | |
| 576i (50) | |
|
HDMI |
480i/ 576i / 480p / 576p |
| 1080i (60 / 59.94 / 50) | |
| 720p (60 / 59.94 / 50) | |
| 1080p (60 / 59.94 / 50 / 30 / 29.97 / 25 / 24 / 23.98) |
General
|
Input voltage |
DC / battery 11V-17V 3A, AC 100-240V, 50/60Hz |
|
Power consumption |
55W |
|
Working temperature |
0°C～+50°C |
|
Working humidity |
10%～90% |
|
Storage temperature |
-15°C～+60°C |
|
Storage humidity |
10%～90% |
|
Dimensions |
517×319×74.3mm |
|
Net weight (main body) |
5.7kg |
