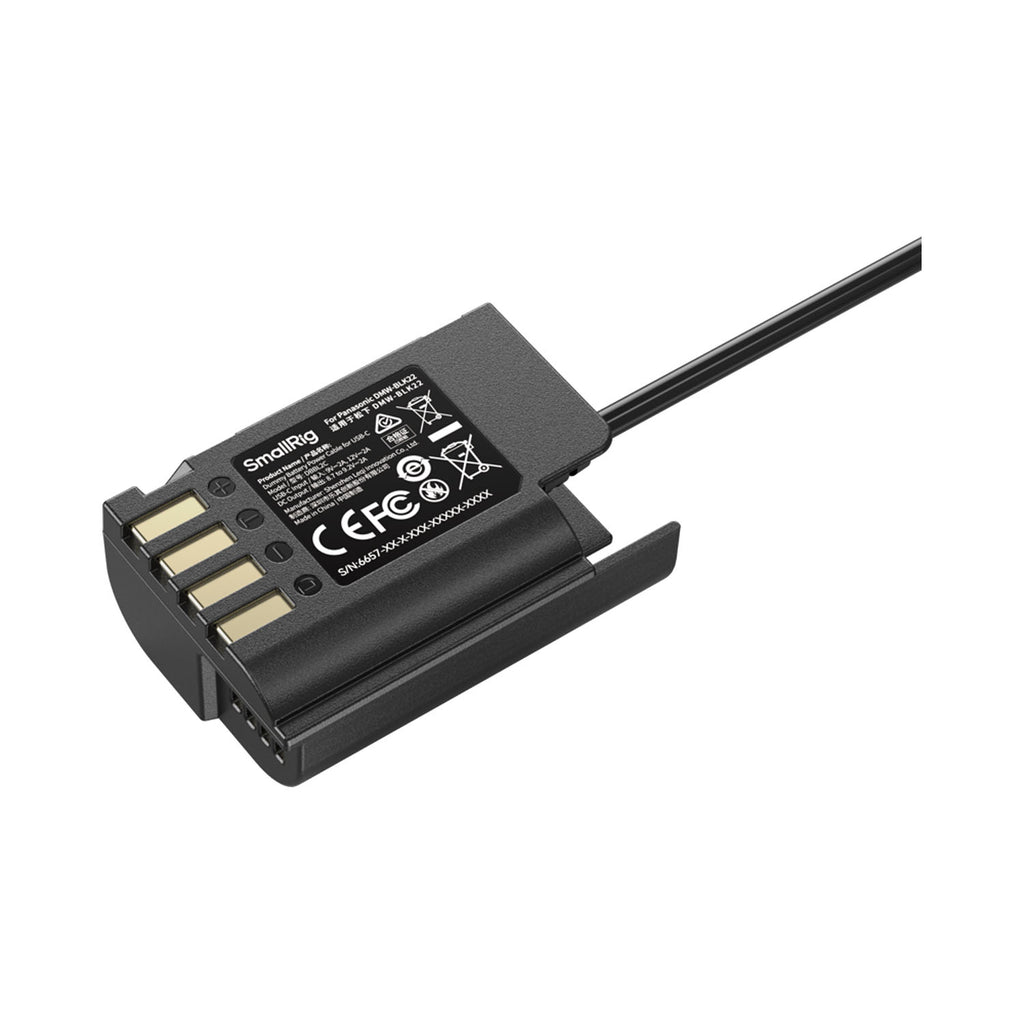

SmallRig 6657 Dummy Battery Power Cable for USB-C for Panasonic DMW-BLK22

SmallRig 6657 Dummy Battery Power Cable for USB-C for Panasonic DMW-BLK22

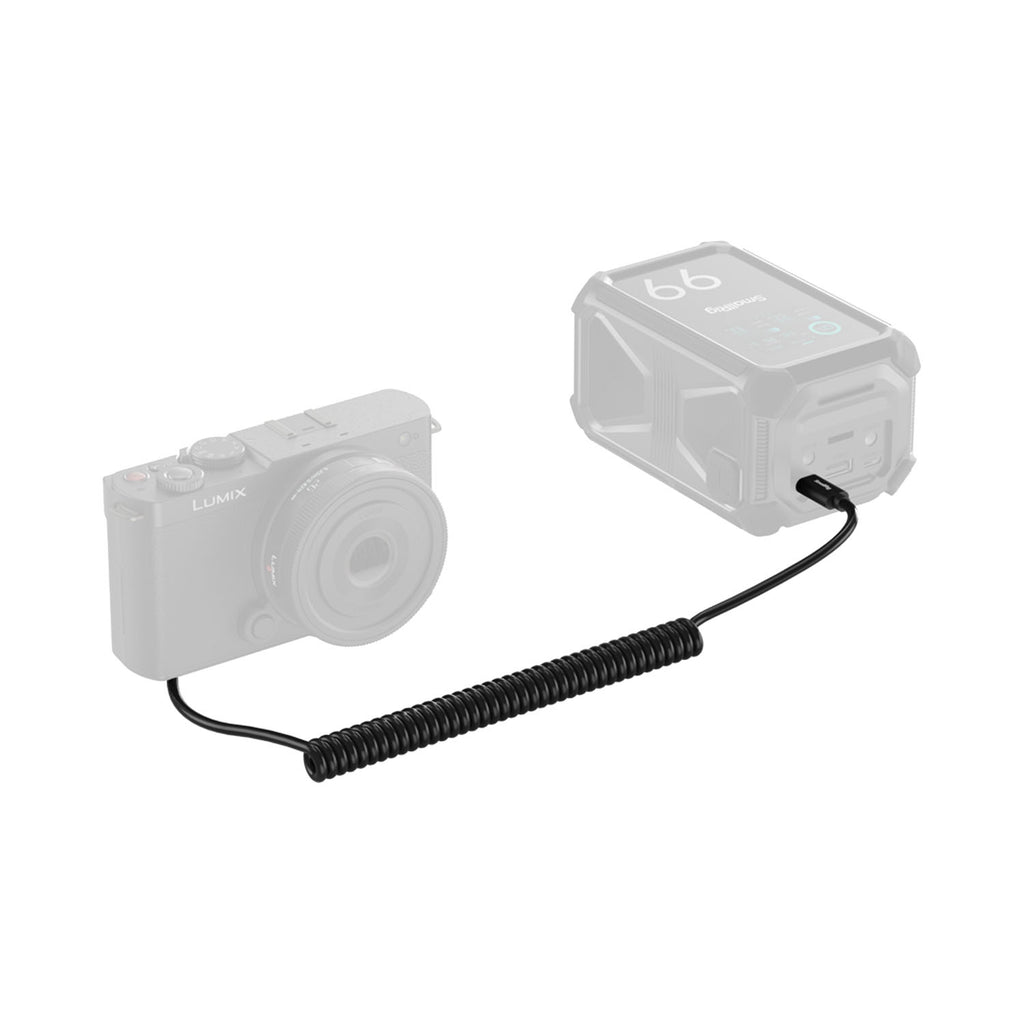

When connected via USB-C to a PD charger, power bank, or the USB-C output port of a V-mount battery, it provides stable, continuous power to the camera, reducing the need for frequent battery changes and helping support uninterrupted recording and a smoother workflow.

The product supports PD 9.0V / 12.0V input and is compatible with widely used PD fast-charging protocols, allowing flexible power options from PD chargers, car chargers, and power banks for convenient indoor and outdoor shooting. It is easy to install and ready to use with no tools or complicated setup required.

Featuring an upgraded chip, it helps ensure reliable camera compatibility without warning messages while preserving original functions and menu operation.

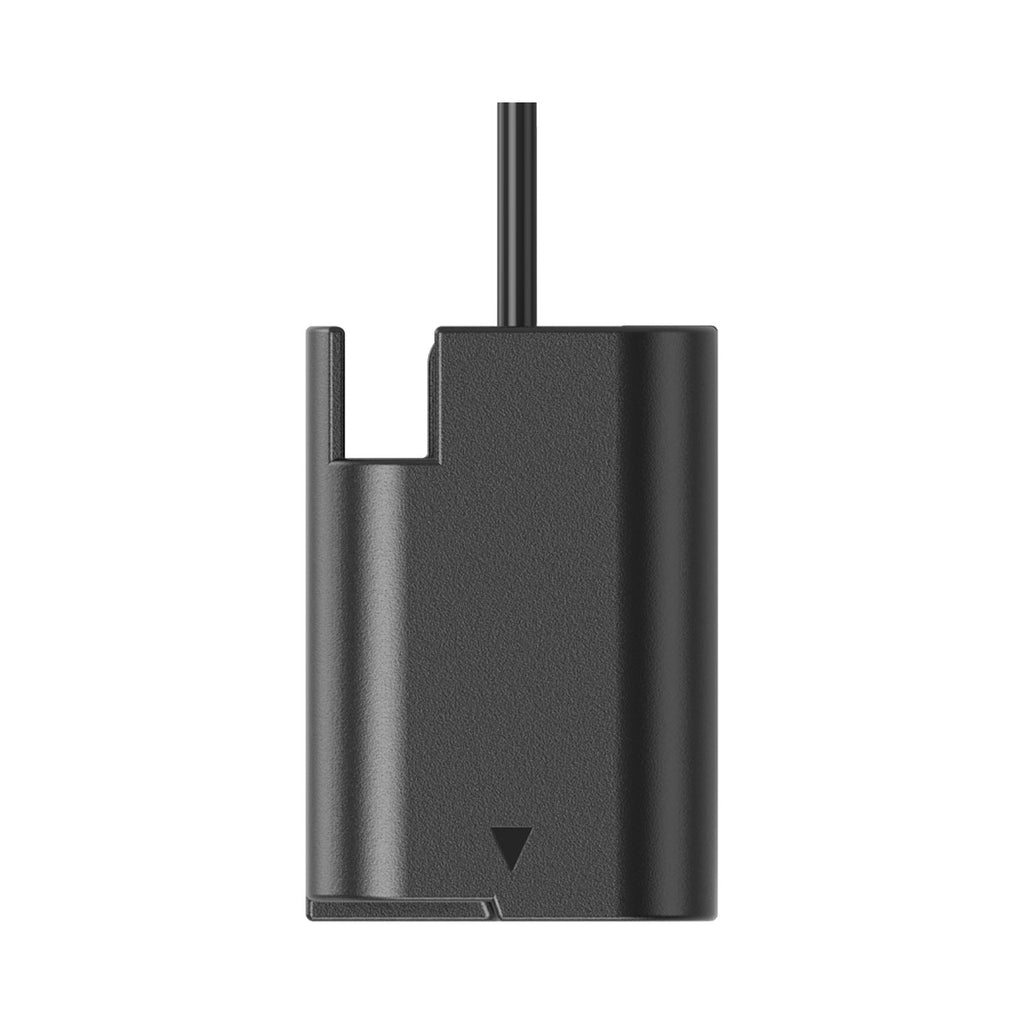

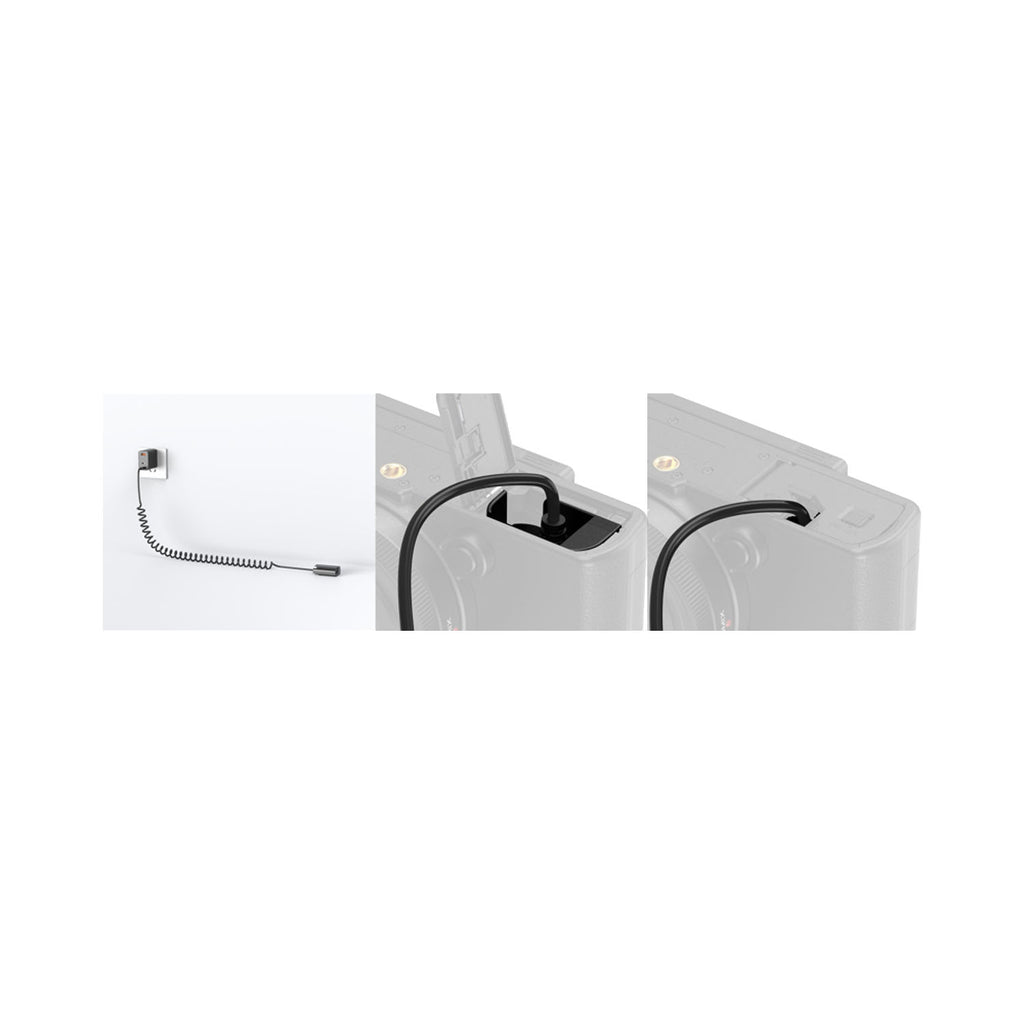

The dummy battery is molded to the dimensions of the original battery for smooth installation and removal, without interfering with normal battery compartment door operation.

It also includes multiple safety protections, including overvoltage, overheat, overcharge, and short-circuit protection, and features a flame-retardant ABS housing for safe, reliable long-term use.

Certifications: FCC, CE, RoHS, ISED, RCM, Quality Inspection Report, and Structural Analysis ReportTechnical Data:

• Max Output Voltage: 9.2V
• Min Output Voltage: 8.7V
• Input Voltage: PD 9.0V, PD 12.0V
• Input Current: 2.0A
• Output Current: 2.0A (Continuous)
• Output Protection Current: 4.5A to 5.4A
• Operating Temperature: -20°C to 50°C
• Storage Temperature: -20°C to 60°C
• Material(s): ABS

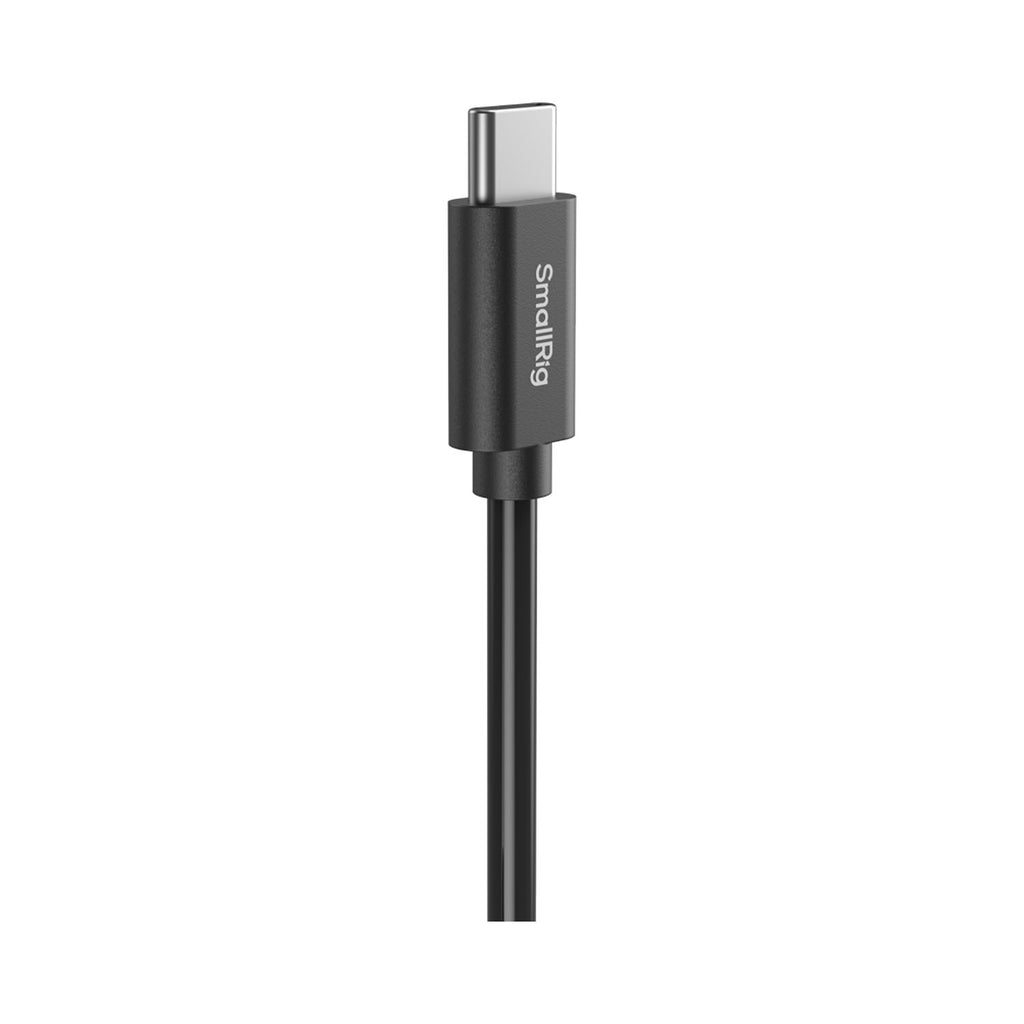

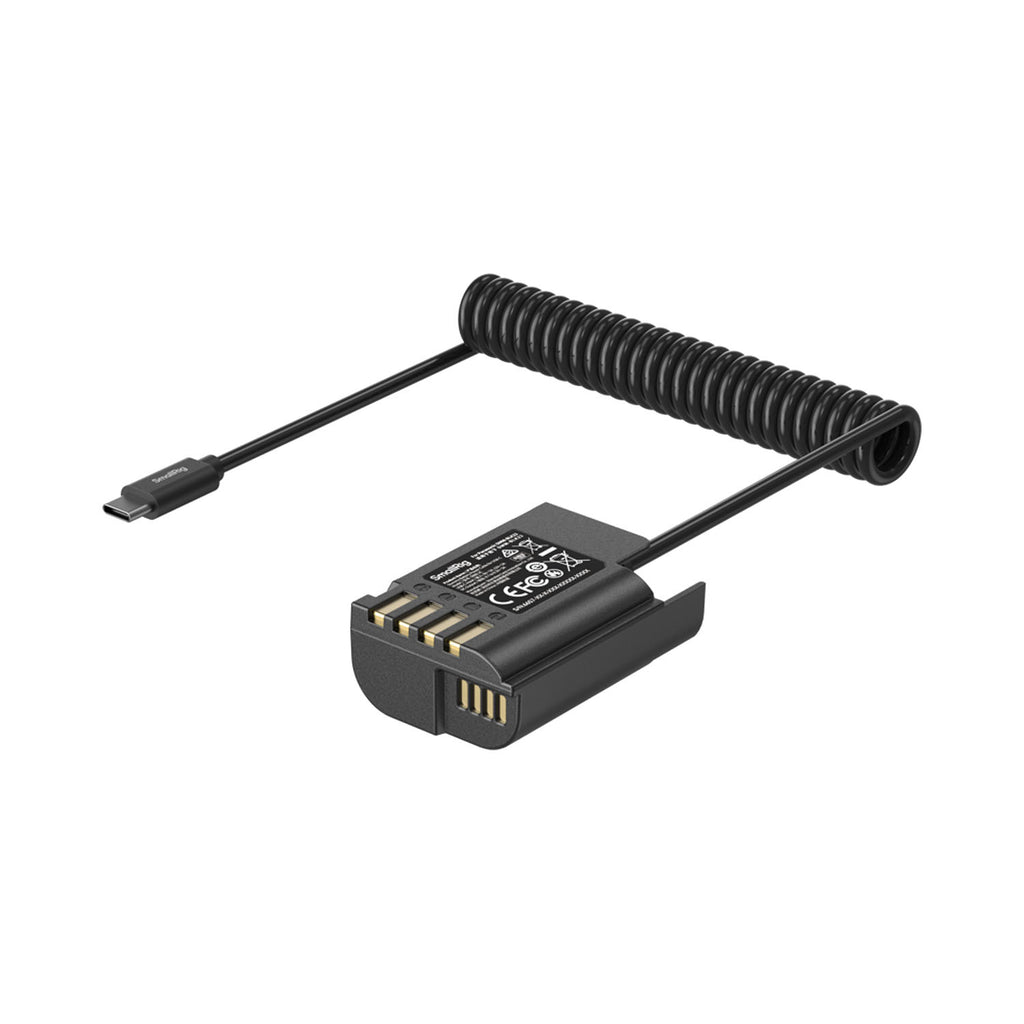

• Input Specification: USB-C male connector with a coiled cable extendable from 80.0cm to 100.0cm

Compatibility:

• Compatible with Panasonic S5, S5M2, S5M2X, S9, GH6, GH7, G9M2, GH5M2, S1M2, and S1RM2.

Packaging includes:

• USB-C to DMW-BLK22 Dummy Battery Power Cable
• User Manual
