Feelworld Monitor LUT11H

Key Features

• 10.1" 1920 x 1200 IPS LCD Monitor
• HDMI Input and Output
• Accepts SD, HD, and UHD 4K Video
• 2000 cd/m² Brightness
• 800:1 Contrast Ratio
• 170° Viewing Angle
• Programmable Control Buttons
• Includes Dual L-Series Plate
• DC Power Output to Camera/Accessory
• Image Monitoring Tools

The 10.1" 4K Ultrabright Touchscreen HDMI Monitor from FeelWorld is an IPS LCD panel up to the task of displaying SD, HD, 2K, UHD 4K, and DCI 4K video. The LCD panel boasts a 1920 x 1200 resolution, 16:10 aspect ratio, 800:1 contrast ratio, and a 2000 cd/m² measured brightness for easy viewing outdoors as well as in. The IPS LCD provides 170° viewing, allowing you to see the image without being directly in front of the monitor and not experiencing distorted colors or contrast.

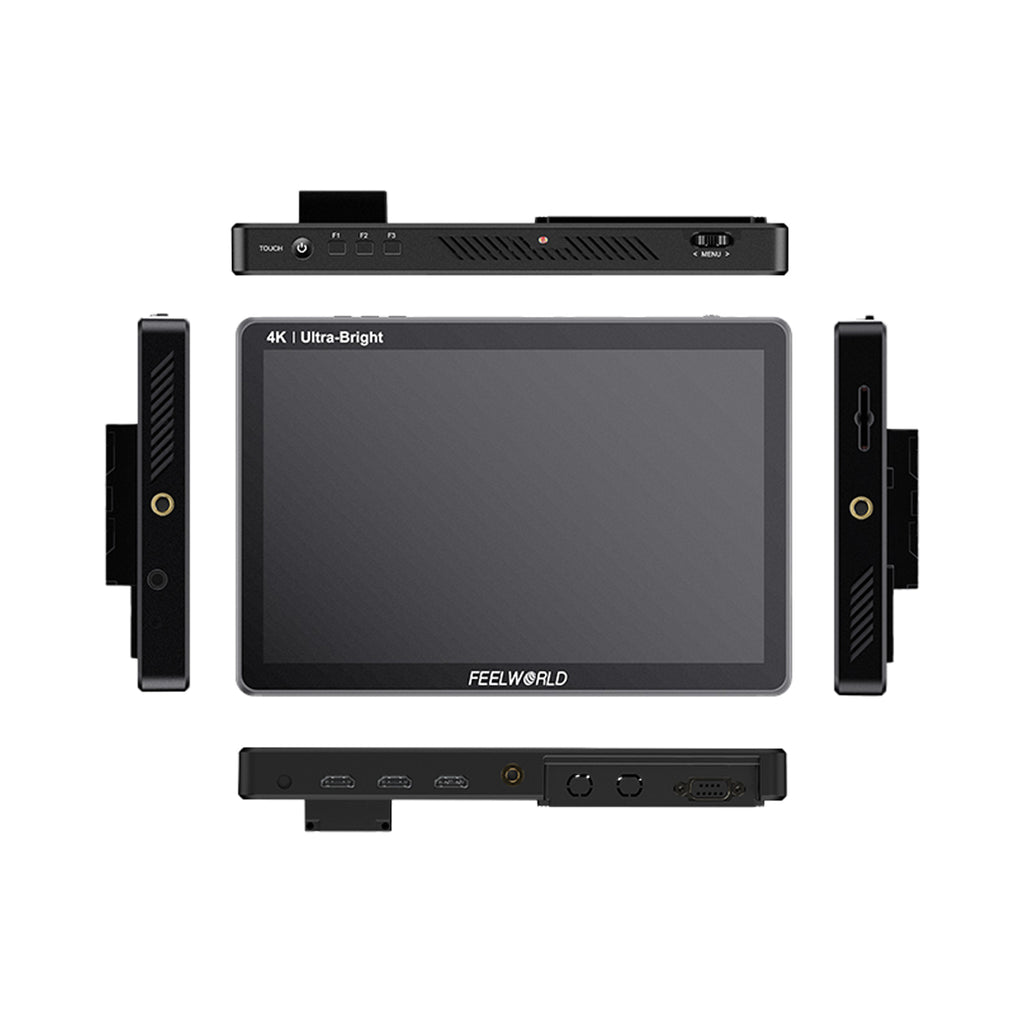

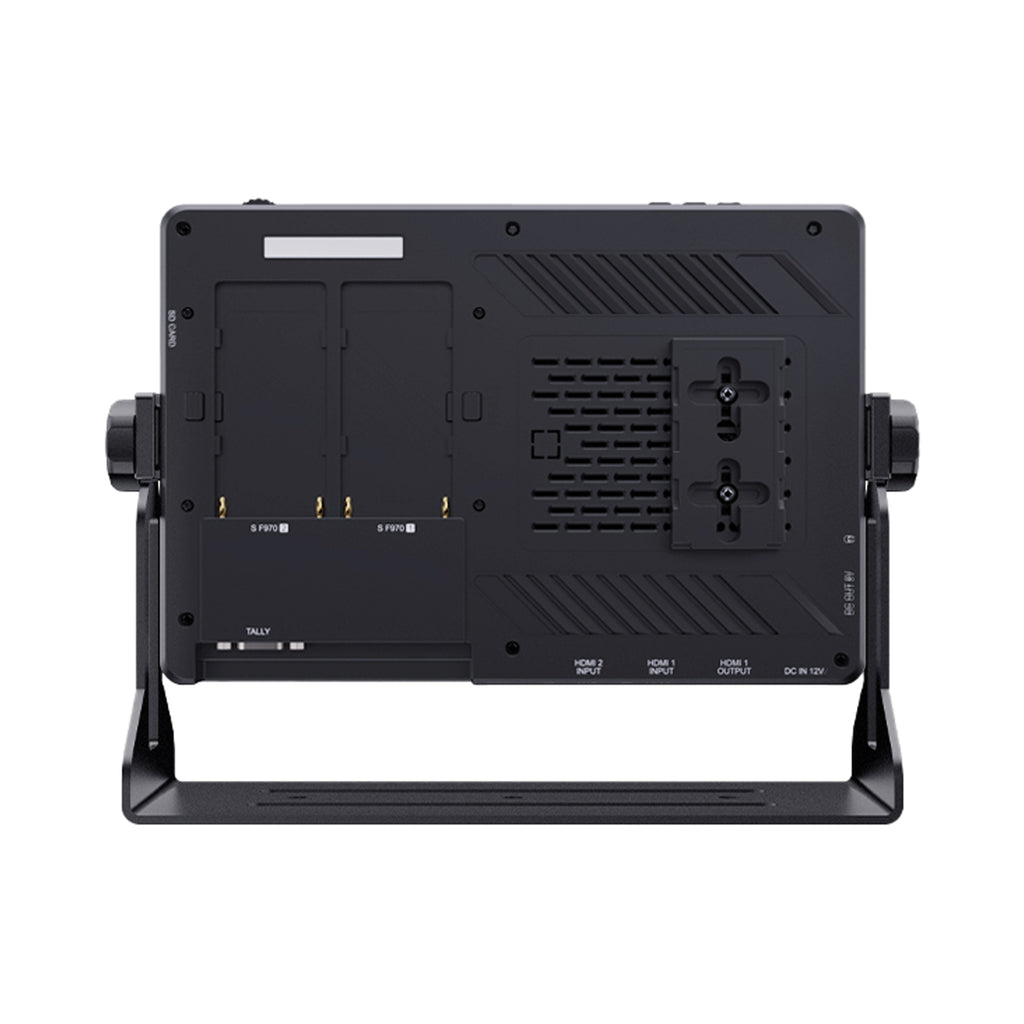

On the side edge of the monitor, you'll find HDMI input and output connections, while the headphones and external DC power input reside on the opposite edge. There are three 1/4"-20 mounting threads around the sides, and the control buttons reside along the top edge of the monitor. The back of the monitor features a dual L-series battery plate, as well as a removable accessory mounting plate to accommodate wireless gear or other mounts. A variety of image evaluating tools is built into the monitor including a histogram, false color, and zebras for checking exposure, peaking and magnification for checking focus, and markers for ensuring correct framing.

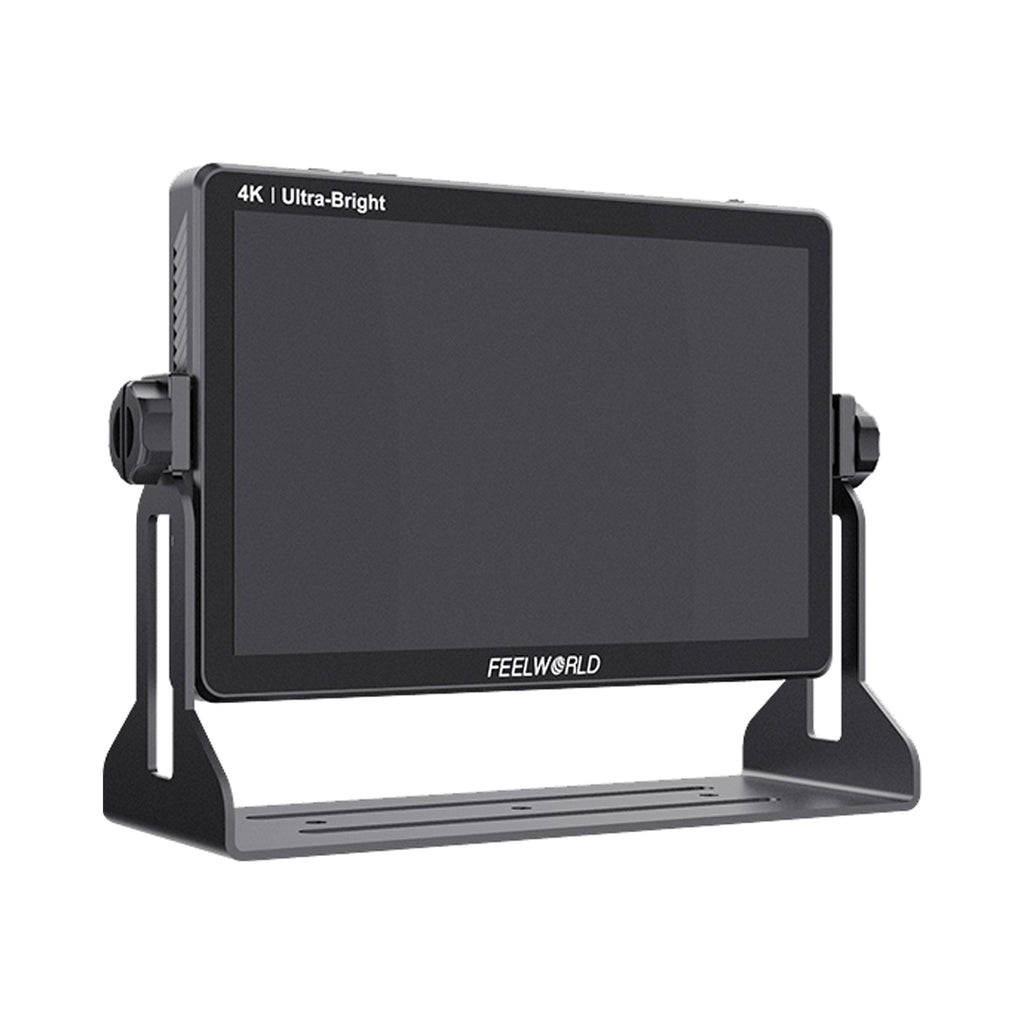

10.1" Professional HDMI Camera Monitor

The LUT11H comes with a 10.1" 1920 x 1200 Full HD panel and multiple color gamuts such as DCIP3 to display your stills and monitoring content at superior color fidelity, providing more space for post color correction. The wide 170º viewing angle makes it easy for multiple members of the crew to watch at the same time.

Multiple Color Gamuts

The monitor supports REC709, DCIP3, and BT2020 color gamuts.

Daylight Viewable

With the support of 2000 cd/m² ultra-high brightness, the LUT11H can be used for outdoor shooting, allowing you to shoot without a sunshade.

Auto Dimming

The LUT11H has an ambient light sensor that can automatically adjust the monitor brightness to match your filming environment.

Intuitive UI

LUT11H features an updated UI menu with iconized software functions for more convenience and speed.

Custom Shortcut Keys

There are three custom shortcut buttons on top of the monitor for shortcut functions to quickly call up functions during the shooting process.

Full Touchscreen Design

The touchscreen LCD user interface provides incredible control. You can use simple tap and swipe gestures for the important monitoring functions without buttons. Plus, you can also operate it via the scroll wheel key.

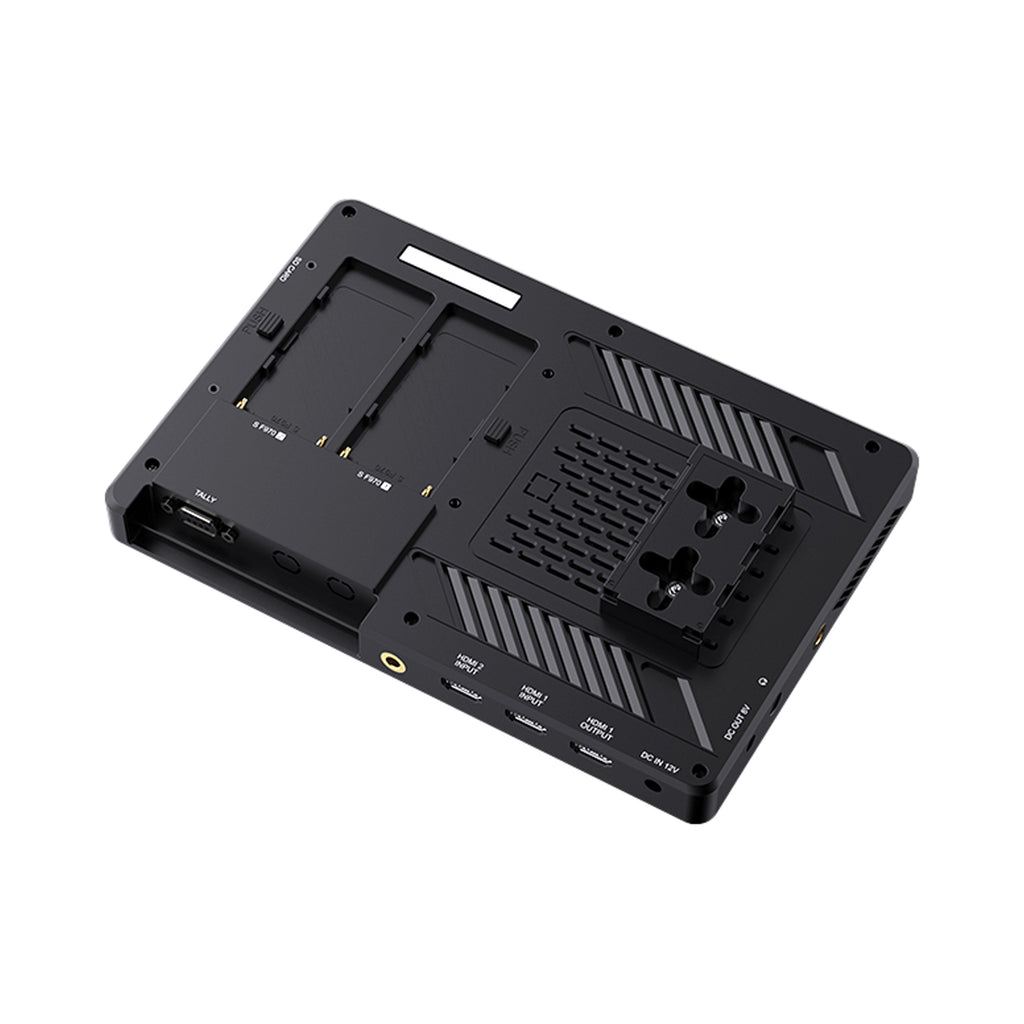

Mounting Design

The back features a removable mounting area for external equipment. It has two cross slots, so you can adjust the position of the external device by loosening the screws. When you don't need the kit, you can loosen the screws to remove it.

Smart Tools

The flexible OS is packed with an extensive suite of scopes, all one touch away and simple to use. The Video OS includes tools for focus, framing, and exposure (waveform, RGB parade, vectorscope, RGB histogram, histogram, embedded audio, focus peaking, zoom, zebra, false color, safe frames, etc.), a flexible 3D LUT implementation (use built-in LOG to Rec.709 video or upload .cube files), and options for anamorphic de-squeeze monitoring.

Power Options

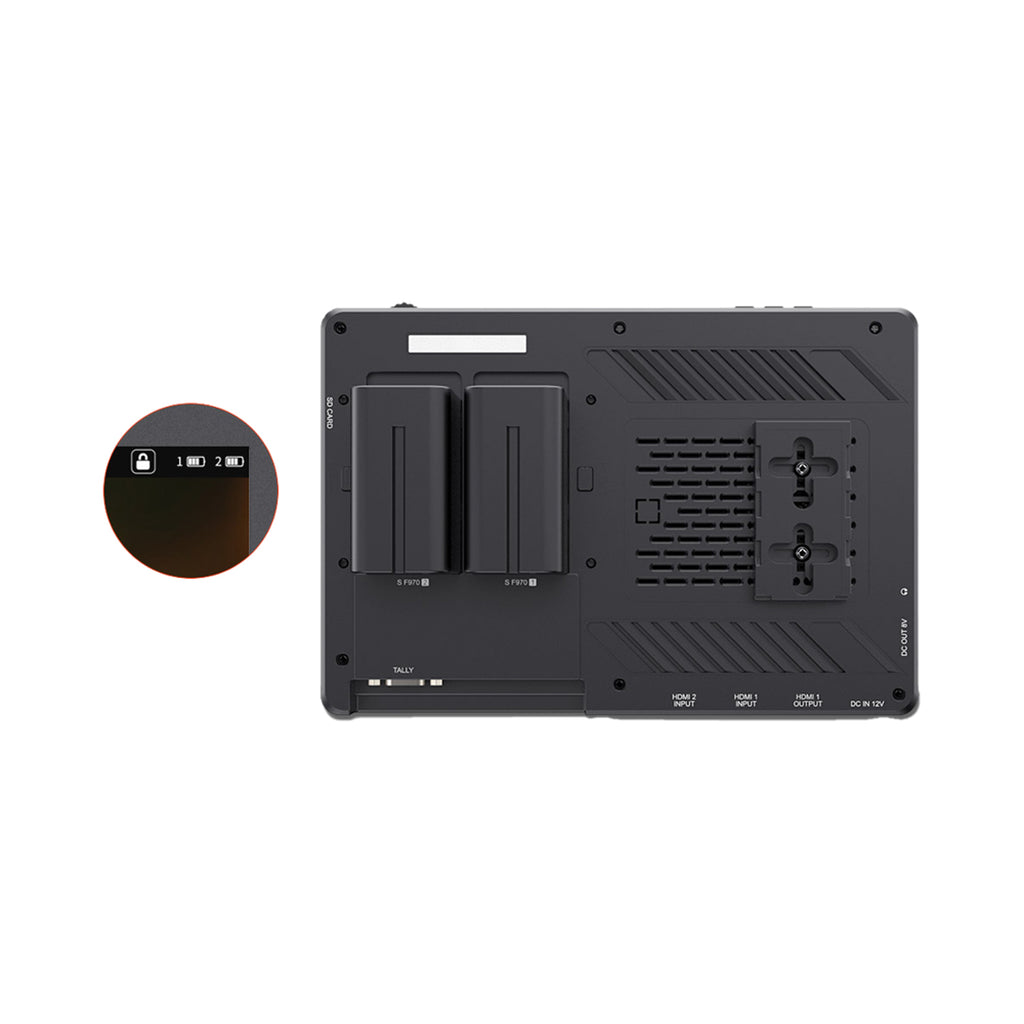

The LUT11H is not only equipped with 12 VDC/3A input power, but it also provides an 8 VDC auxiliary power output, allowing shooters to power their cameras. With an optional battery adapter cable, you can extend the monitor's runtime. There is a dual L-series battery plate on the back of the monitor that can run the monitor for up to four hours using two NP-F970 batteries.

3D LUT Support

The LUT loading function makes color calibration easier and more intuitive. You could use a built-in LOG or upload .cube files. The monitor allows you to load up to 50 custom LUTs, looks, or profiles at any time via the SD card slot and instantly select between them.

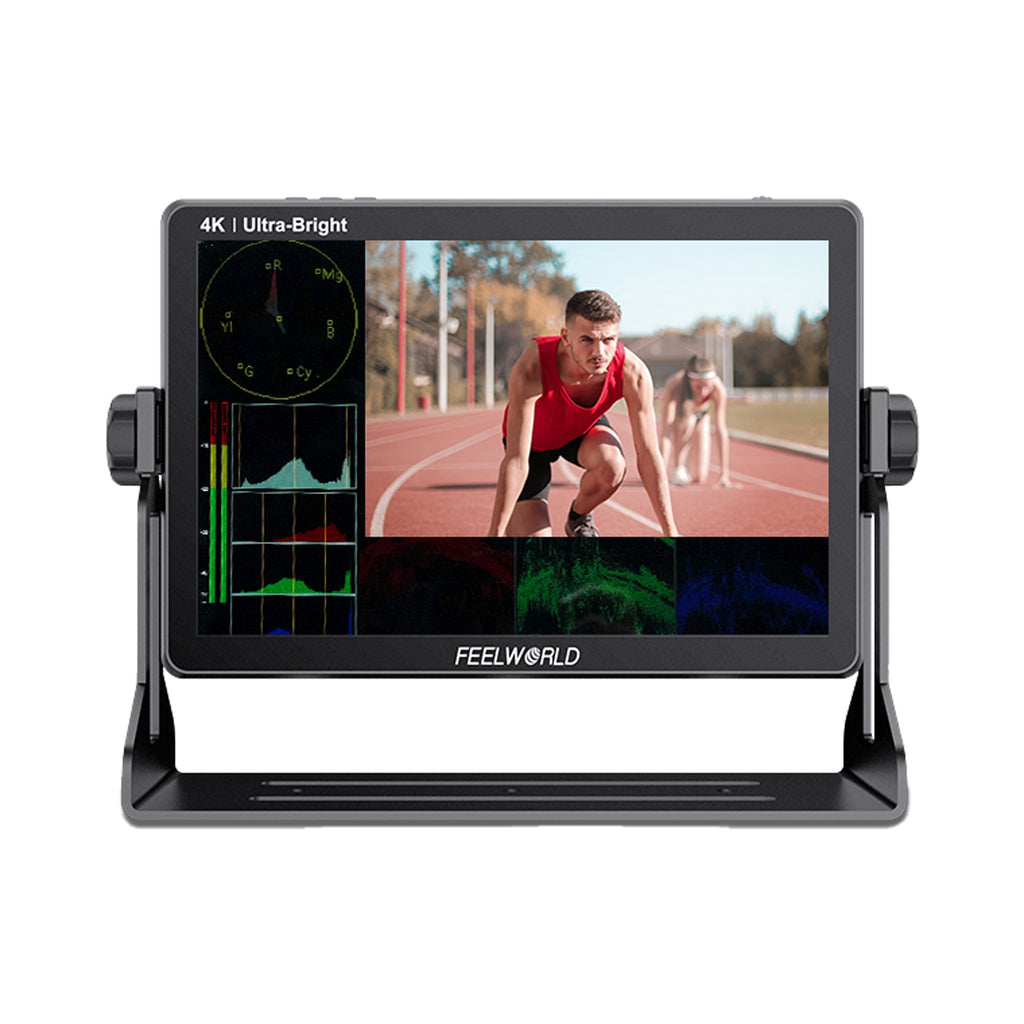

Accurate Waveform Monitoring

When you need to analyze image quality more accurately than simply looking at the picture, use the monitor's built-in waveform monitoring. Choose from waveform (RGB Parade, YUV Parade, Y Parade), vector, histogram, audio phase, and level displays, and get broadcast accurate waveform monitoring that shows everything you need to know technically about your video and audio signals. The functions can be opened separately, and it also supports one button to open all scope modes.

In the Box

• FeelWorld 10.1" 4K Ultrabright Touchscreen HDMI Monitor
