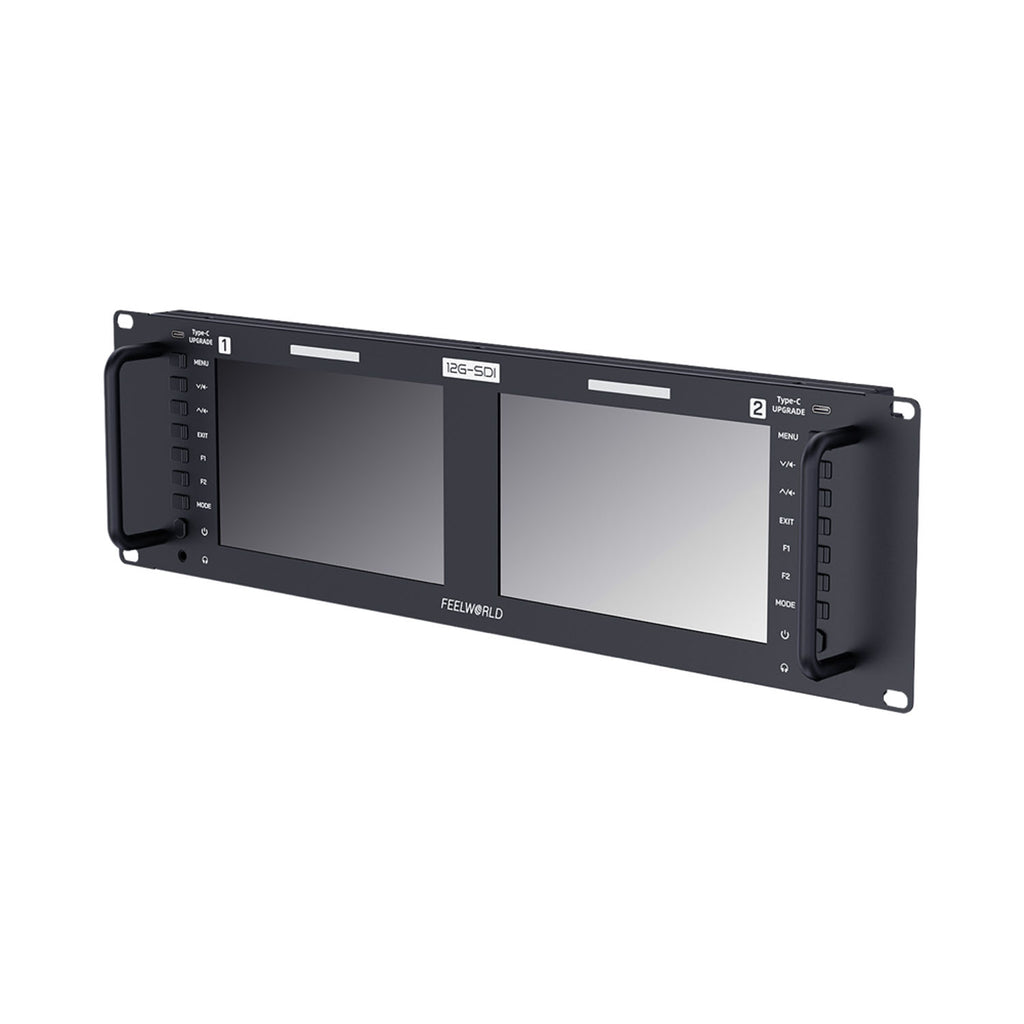

Feelworld Monitor FRM701G Dual 7 inch 3RU rackmount

Seetec Monitor FRM701G equipped with dual 7-inch high resolution 1920x1200 panels that allow you to check out two video signals at the same time, making it easy to create a multi-camera monitoring scenario.

No matter where you need to monitor 4K SDI or 4K HDMI signals, the FEELWORLD FRM701G is your ideal choice.It comes with two independent 7-inch displays, allowing you to monitor two different signal sources simultaneously. Supports 4K@60Hz input and loop out, and features a 3RU rack-mount design for easy installation in video walls or OB vans.Perfect for broadcasting, post-production, on-set monitoring, flight case systems, OB vans, and more.

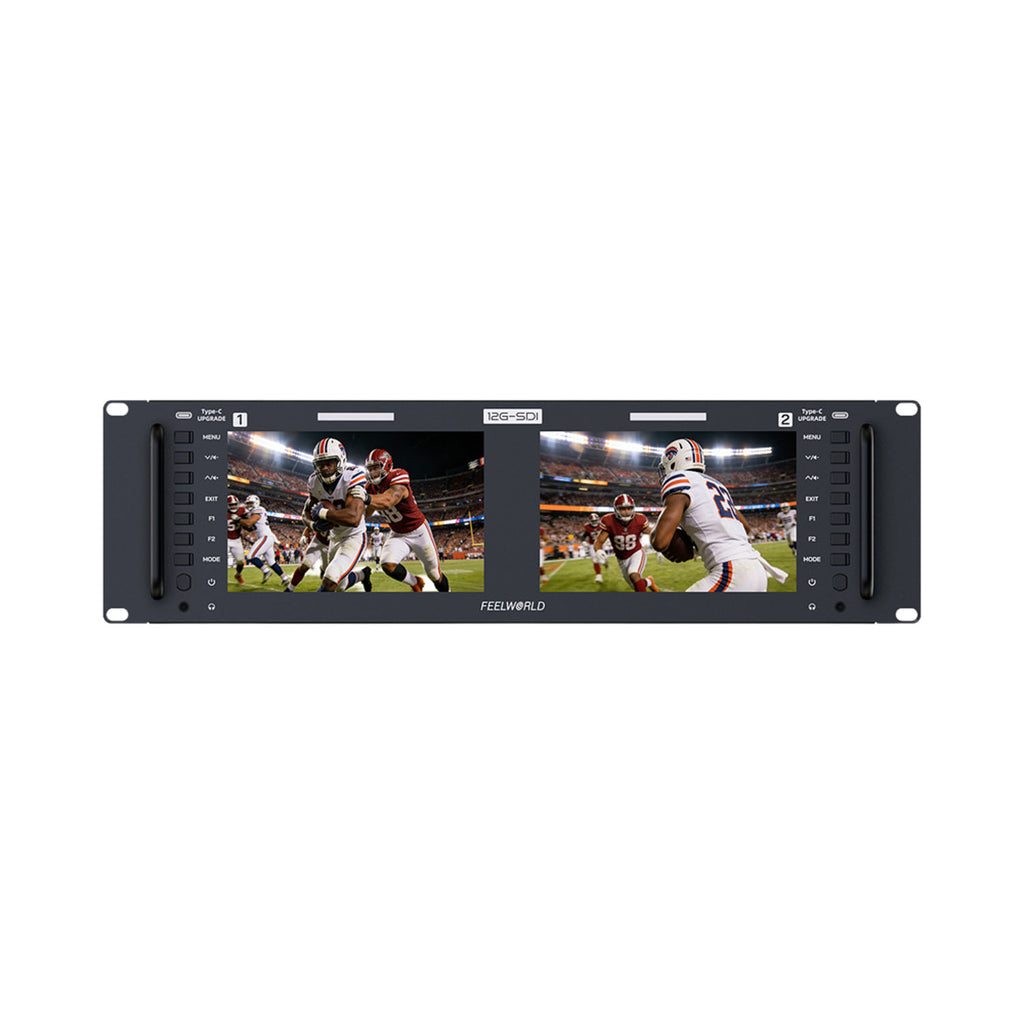

2x7" Full HD IPS

Clearly checking and capture every nuance

FRM701G equipped with dual 7-inch high resolution 1920x1200 panels that allow you to check out two video signals at the same time, making it easy to create a multi-camera monitoring scenario. Vibrant color reproduction for high-quality imaging.160°wide viewing angle allows you to enjoy a more perfect visual experience.

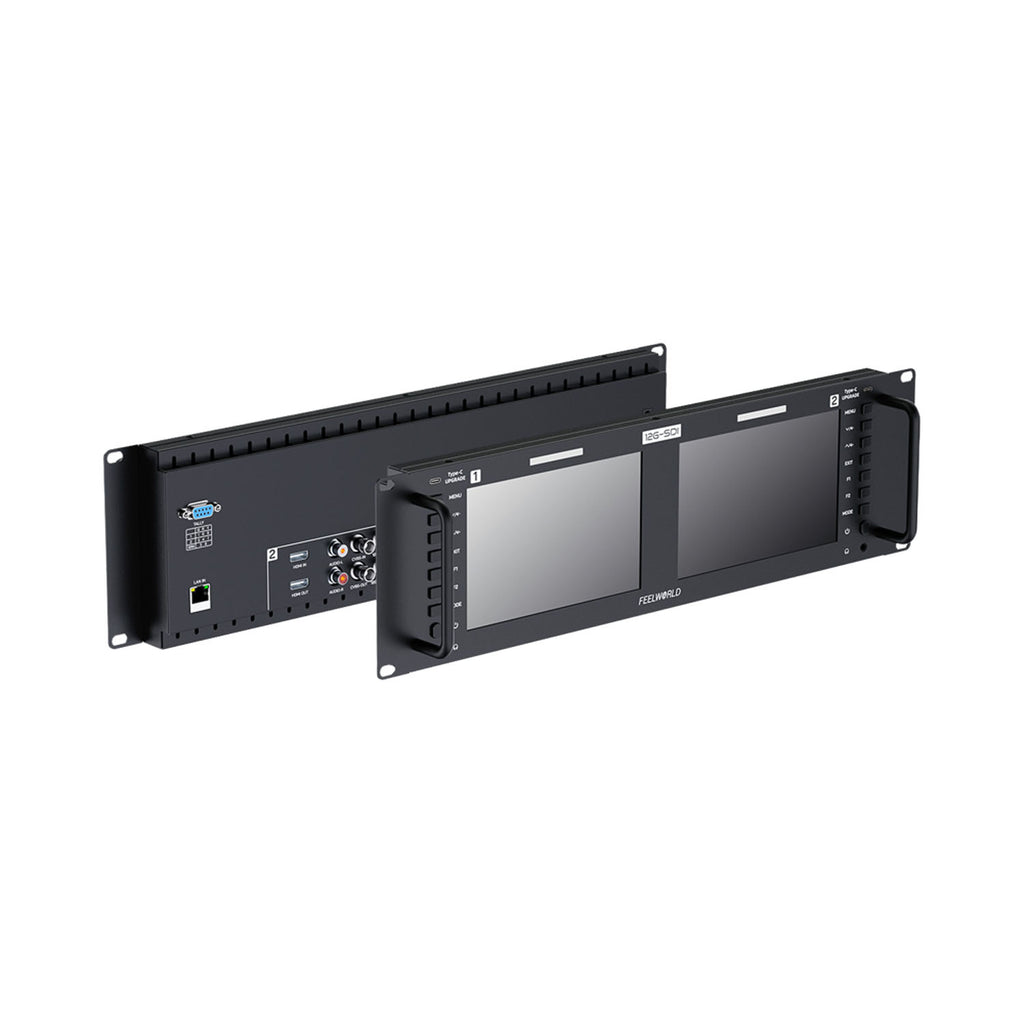

Compact 3RU Rackmount Design

FRM701G with 3 rack units high, and the thickness only 30.5mm and a standard 19 inch rack width, this means it is ideal for installation in equipment racks and monitor walls.

12G-SDI High Speed Transmission

Adopting 12G-SDI single link technology and compatibility with 6G-SDI/3G-SDI/HD-SDI/SD-SDI, supporting 12Gbps per second transmission rate, better meeting the video transmission needs of high definition and high frame rate. Together with HDMI 2.0.

SDI Time Code

The monitor supports time code display under SDI signal,including LTC and VITC types，synchronization with the camera. Through the time code, you can quickly and accurately find a specific frame in the video It is particularly convenient to identify specific frame rates in filming and television post production and video production.

Easy Remote Control

Connecting the LAN interface of FRM701G can remotely adjustment for the monitor via the control software GPIO, which makes it very easy to set up a matching monitor.

Note: the software is suitable for Windows system at present.

12G-SDI Support Format

• 720p(60/59.94/50/30/29/25/24/23.98)
• 1080i(60/59.94/50)
• 1080p (60/59.94/50/30/29.97/25/24/23.98)
• 3840×2160p (60/59.94/50/30/29.97/25/24/23.98)
• 4096×2160p (60/59.94/50/30/29.97/25/24/23.98)

HDMI Support Format

1. 480i/576i/480p/576p
2. 1080i (60/59.94/50)
3. 720p (60/59.94/50/30/29/25/24/23.98)
4. 1080p (60/59.94/50/30/29.97/25/24/23.98)
5. 3840×2160p (60/59.94/50/30/29.97/25/24/23.98)
6. 4096×2160p (60/59.94/50/30/29.97/25/24/23.98)

Packaging List:

• 1× Monitor
• 1× 3A Power Adapter
• 1× USB-C to USB-A Adapter
• 1× Tally Kit
• 1×Quick Start Guide
