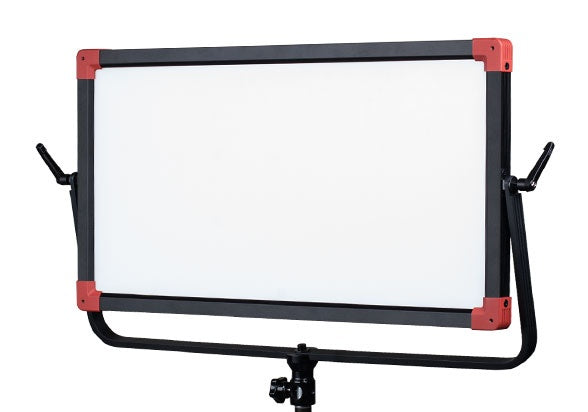

SWIT PL-E90D BI-COLOR SMD PANEL LED LIGHT, DMX SUPPORT

480pcs Edge Mounted LEDs

PL-E90D is specially designed for field portable lighting applications.

480pcs SMD-LEDs are mounted in the inner edge of the light frame, and with SWIT unique 90° light guide technology, PL-E90D can output bright, soft and equally spread light, meanwhile

The light body is slim enough and portable, which is an ideal light source for interview kit field video productions, and broadcast studios.

Laser Dots 90° Light Guide

High efficiency and super bright

The traditional edge mounted LED lights are always not so bright, because half of the light will go to the backside, even if there’s reflection board, there’s still a lot of light lost.

SWIT innovative technology is to add laser dots with calculated spaces on the reflection glass, so that the multi angles of edge light will be converged on the laser dots, and output 90° to the front with minimum light lost.

Then the slim edge mounted light can also be high brightness.

Swit er en af de store spillere inden for video og tv produktion.
AVS Nordic er Dansk importør og kan levere alt i Swit.

• Swit lamper
• Swit batterier & Ladere
• Swit trådløs video-transmission
• Swit kamerastativerstiver
• Swit monitorer
• Swit tilbehør
• Swit Green Screens

• 480pcs edge mounted SMD-LEDs
• Unique 90° light guide technology
• 90W power, 2200Lux @ 1meter
• 0-100% flick-free dimming
• 70° effective wide beam angle
• 2700K-6500K continuously adjustable
• Super high CRI Ra 98, TLCI 99

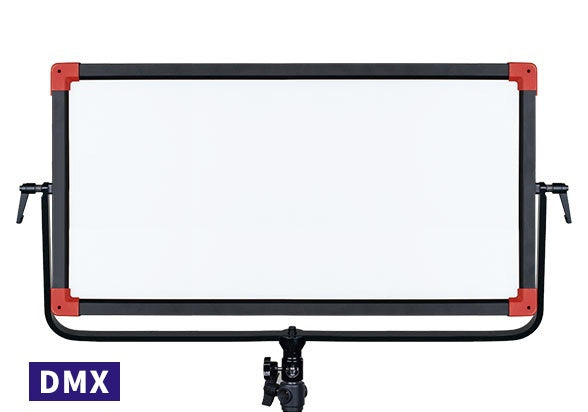

• DMX512 control and Interaction control

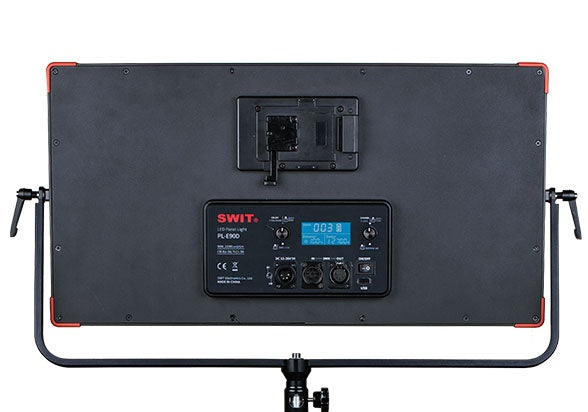

• LCD display color, dimmer and battery info
• DC 11-36V wide input voltage
• Power by V-mount / Gold mount battery
• Strong all-metal housing with U-stand
• Provide portable 3-light kit with tripods
• Optional 4-leaf barn door and 40° honeycomb
