Key features
-
2ft RGBWW pixel bar with flat, edge-to-edge design for seamless multi-light setups
-
48 individually controllable pixels with industry-leading pixel density
-
Supports Magic Infinity FX, Sidus Link, CRMX, and wired DMX control
-
Built-in battery with approx. 100 min runtime at max output
-
High color accuracy with CRI 96, TLCI 98, and CCT range 2,000K–10,000K
High-performance Full HD/UHD Monitoring
The INFINIBAR PB6 is a 2ft RGBWW pixel bar designed for both creative and practical lighting setups. Its unique flat, edge-to-edge design ensures multiple units connect seamlessly, enabling stunning continuous lighting effects.
[Continues below the image↓]

Versatile input formats and workflow flexibility
Featuring 48 individually programmable RGBWW pixels, the PB6 can produce rich, vibrant colors and effects. Control is possible through Sidus Link, Sidus Link Pro, or CRMX, with additional wired DMX control for permanent installations.
[Continues below the image↓]

HDR, LUTs and advanced image controls
With Magic Infinity FX, you can map effects across up to 1,024 pixels across multiple bars, creating immersive light sequences up to 42ft in length. Adjustable CCT from 2,000K–10,000K with green/magenta shift ensures perfect on-set color matching.
[Continues below the image↓]

Compact, portable and field-ready
Weighing just 1 kg, the PB6 features a built-in battery for mobile shoots and multiple mounting options, including magnets, clamps, and 1/4"-20 mounting points. It’s equally suited for in-frame use or as hidden practical lighting.
[Continues below the image↓]

Designed for broadcast, OB trucks and post production
From creating complex lighting arrays to geometric shapes, the PB6 offers flexibility for music videos, commercial productions, and stage lighting. Its robust build and precision control make it a dependable tool in any pro workflow.
[Continues below the image↓]

Pro-level signal tools built-in
The PB6 delivers CRI 96, TLCI 98, and SSI (Tungsten) 85 for professional-grade light quality. Optional softbox and 45º fabric light control grid accessories allow you to shape and diffuse light quickly without tools.
[Continues below the image↓]

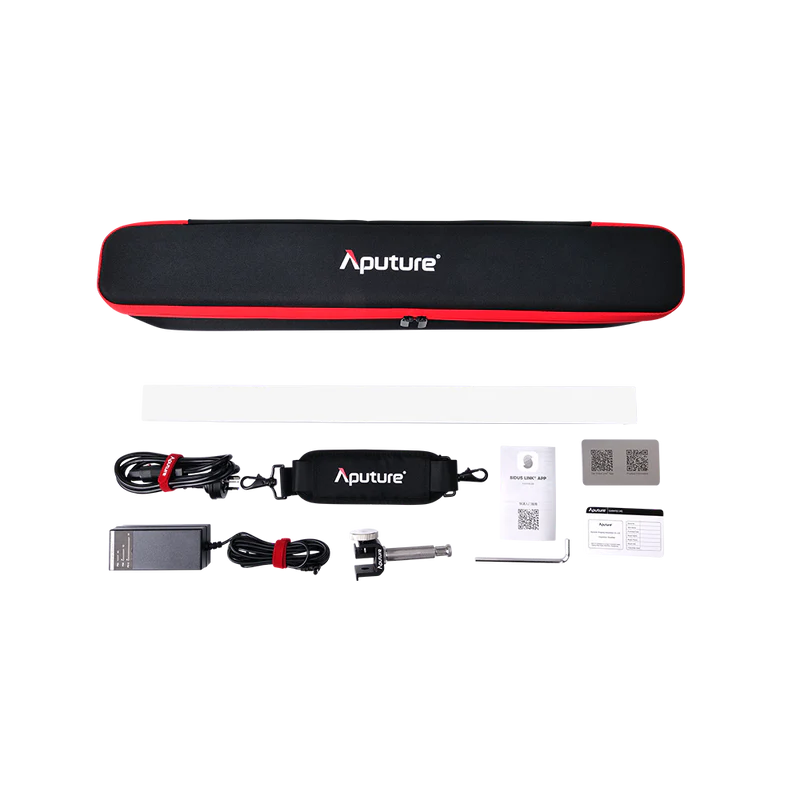

📦 What’s in the Box?
Included accessories and components:
-
1 × INFINIBAR PB6
-
1 × 48W DC power adapter (3 m)
-
1 × AC locking power cable (1.5 m)
-
1 × INFINIBAR clamp-to-baby-pin adapter
-
1 × INFINIBAR straight connector
-
1 × 5 mm hex wrench
-
1 × Carrying case
Technical Specifications
(In Single Pixel Mode)
🔗See manual here
Specification |
Value |
CCT |
2,000K – 10,000K |
CRI |
96+ |
TLCI |
98+ |
CQS |
96 |
SSI (D56) |
74 |
SSI (Tungsten) |
85 |
TM-30 RF (Avg.) |
94 |
TM-30 RG (Avg.) |
103 |
Color Chipset |
RGBWW |
Light Engine |
RGBWW (Single Pixel), RGB (Multi Pixel) |
Pixel Count |
48 |
Beam Angle (Half-Peak) |
120º |
Lumens |
1,110 lm |
Max Power Output |
14W |
Max Power Consumption (Fixture) |
18W |
Max Power Consumption (Power Supply) |
20W |
Operating Voltage & Current (Fixture) |
24V, 0.9A |
Operating Voltage & Current (Power Supply) |
100V–240V 50/60Hz, 1.5A |
Battery Capacity |
7.4V, 4000mAh, 29.6Wh |
Battery Life |
Approx. 100 min @ max output |
Charge Time |
Approx. 120 min (24V/1A) |
Pixel Mapping |
48 pixels |
Operating Temperature |
-10ºC to 45ºC / 14ºF to 113ºF |
IP Rating |
IP20 |
Screen Type |
OLED |
Firmware Upgradeable |
Sidus Link, USB-C |
Cooling Method |
Passive Cooling |
Mounting |
INFINIBAR Rail |
LED Lifetime (L70) |
50,000 hours |
Color Shift Over Lifetime |
2% over 6,000 hours |
Certifications |
CE, FCC, KC, NCC, ROHS, RCM, ICES, UKCA, PSE |
Control Methods |
Sidus Link App, DMX/RDM, LumenRadio CRMX |
Wireless Range (Bluetooth) |
≤80 m / ≤262.5 ft |
Wireless Range (LumenRadio) |
≤100 m / ≤328.1 ft |
Dimensions – Fixture |
60.4 × 4.5 × 4.3 cm / 23.8 × 1.8 × 1.7 in |
Dimensions – Fixture + Spacer |
60.4 × 4.5 × 5.2 cm / 23.8 × 1.8 × 2.1 in |
Dimensions – AC Power Supply |
12.0 × 5.3 × 3.2 cm / 4.7 × 2.1 × 1.3 in |
Dimensions – INFINIBAR Clamp |
12.2 × 5.5 × 4.0 cm / 4.8 × 2.2 × 1.6 in |
Dimensions – Flight Case |
68.2 × 12.5 × 12.5 cm / 26.9 × 4.9 × 4.9 in |
Weight – Fixture |
1.0 kg / 2.2 lbs |
Weight – Fixture + Spacer |
1.13 kg / 2.49 lbs |
Weight – AC Power Supply |
0.49 kg / 1.08 lbs |
Weight – INFINIBAR Clamp |
0.27 kg / 1.08 lbs |
Total Weight |
1.89 kg / 4.17 lbs |
