Beskrivelse
› Li-ion, 14.4V, 130Wh capacity
› D-tap output socket
› 200W/16A power output
› 4-level LED power indicator
› V-mount connection
› Multiple circuit protections

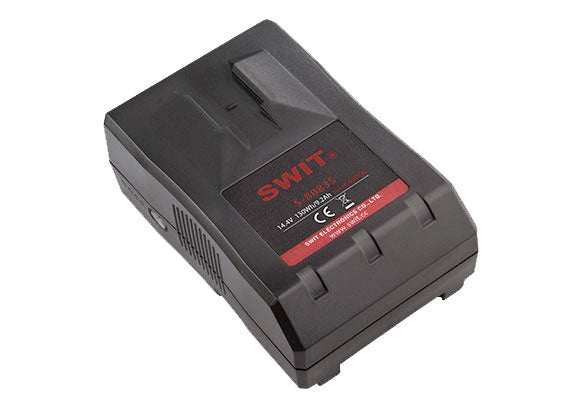

V-mount Camera Battery
S-8083S is the V-mount rechargeable Li-ion battery pack for professional video cameras. It’s compact design, smaller in size.
130Wh / 9.2Ah Capacity
Consists of 12pcs 18650 battery cells, and reaches 130Wh/9.2Ah high capacity.
Run approx 4 hours for normal 30W ENG cameras.

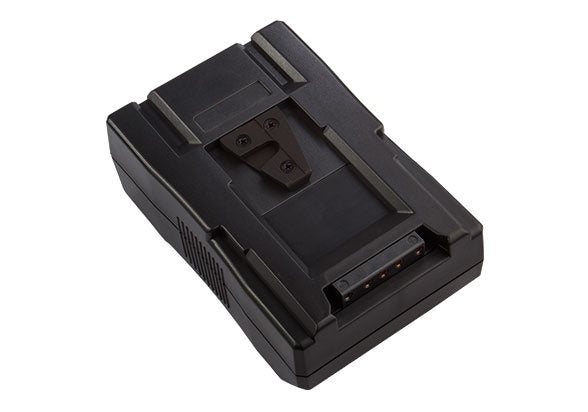

Reliable V-mount Connection
S-8083S is the standard V-mount connection and we adopt the high quality fiber glass V-wedge that ensures the reliable mounting.

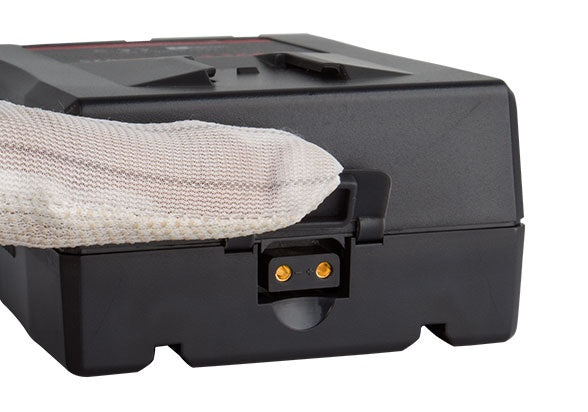

Build-in D-tap DC Output Socket
D-tap DC output socket is equipped on the top side of S-8083S battery, for DC14.4V (Nominate) connection, such as on-camera lights, monitors, wireless transmitter, etc.
The Max Power from D-tap is 100W, 8A.
Product specs/manual:
|
Nominal Voltage |
14.4V |
|
Capacity |
130Wh/9.2Ah |
|
Max output power |
In total:200W |
| Electrodes:200W,16A | |
| D-tap:120W,10A | |
|
Mount Type |
V-mount |
|
Charging Temperature |
0-40°C |
| Discharging Temperature | -20°C-50°C（Capacity and Max Load may decrease when operating below 0°） |
|
Net weight |
Net 0.8kg; With package0.82kg |
|
Dimensions |
134×88×52mm |
See all Swit Product (click for PDF)
