› Pocket fit compact V-mount battery
› Support RED V-Raptor install
› 210Wh/14.6Ah high capacity
› 200W/16A constant high load
› 100W/6A ultra fast charging
› 1x D-tap output & charging input
› 1x USB-A 5V/2A output
› 1x USB-C 48W input & 65W output
› 4-step LED power indicator
› Power info for both SONY & RED
› Wire-Free internal technic
› Multiple circuit protections
Beskrivelse

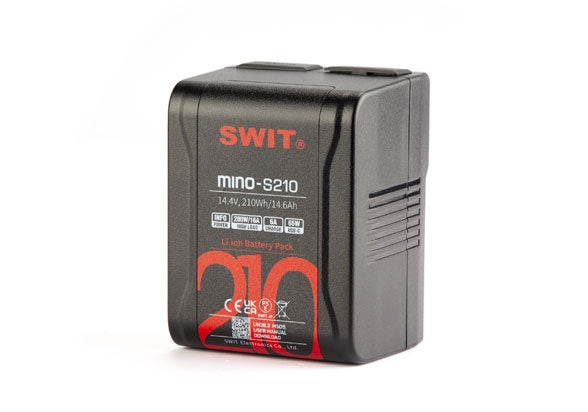

The Smallest 210Wh
V-mount Battery
MINO-S210 is a large capacity pocket fit size V-mount battery for cine range cameras, lights and various film gears. It fits RED V-raptor at the compact size and power the camera for at least 3 hours.

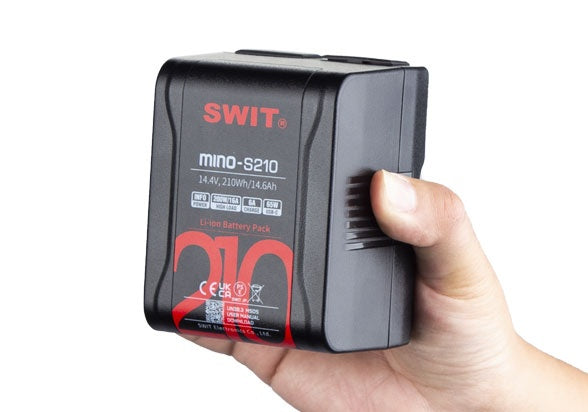

Compact Handheld Size
As a 210Wh large capacity battery, the MINO-S210 has 105x79.6x73.8mm compact size, and weights 1.02kg only. You can even carry it out with your pocket.
210Wh, 200W High Load
MINO-S210 consists of 12 high capacity cells, with 210Wh/14.6Ah high capacity, and support at least 200W/16A constant high load output, for high power cine cameras and lights..
D-tap, USB-A and USB-C
The MINO-S210 provides various DC sockets:
D-tap x1 - 120W/10A load (Support charging input)
USB-A x1 - 5V/2A output
USB-C x1 - 65W output and 48W charging input
USB-C 48W Charging Input
MINO-S70 battery can be charged by USB-C charger, supports PD 5V/9V/12V/15V/20V(Max) 2.4A, 48W charging input, which means you can fully charge the 210Wh battery within 5 hours.
USB-C 65W Power Output
You can power laptop via USB-C by MINO-S210 battery on the filmset. Supports 5V 3.25A, 9V 3.25A, 12V 3.25A, 15V 3.25A and Max 20V 3.25A, BC1.2, PD2.0/3.0, QC2.0/3.0, FCP, SCP multiple protocols. (For Macbook Air/13, Macbook Pro 13/15/16, Huawei Matebook E/12/X13/XPRO, Thinkpad, HP, ASUS, Dell and almost all laptops with USB-C ports)
MINO support USB-C high-speed charging protocol
Built using wire-free internal tech, the MINO series batteries are not only compact and lightweight, but also offer large capacity and also support for USB-C charging.
In addition, these batteries are equipped with advanced safety features such as overcharge protection, over discharge protection, short circuit protection, and temperature protection, ensuring that they are safe to use in any situation.
Furthermore, the MINO series batteries support bi-directional communication, allowing users to monitor their battery status in real-time for a more convenient experience.
In combination with SWIT's PB-M series batteries, the MINO series forms a complete and versatile V-mount battery system with capacities ranging from 45Wh to 210Wh, providing professional users with a comprehensive and reliable power solution.
Get yours today and experience the power of SWIT.
Product specs/manual:
See all Swit Product (click for PDF)
[Continues below the image↓]
Final note
Thanks a lot for visiting our webshop – it really means something to us.
Just a quick reminder: we’re not just an online store.
We host workshops, training sessions, product events and stay in close contact with our users.
If you can’t visit our physical showroom, the next best thing is to create a free customer profile – that way, you’ll still benefit from the same insider advantages and support.
🔗 Create your free profile here
And if you're looking for an easy overview of the full Swit line-up:
You can view right here ↓
Specifikationer
USB-C 65W Power Output
You can power laptop via USB-C
Supports 5V 3.25A, 9V 3.25A, 12V 3.25A, 15V 3.25A and Max 20V 3.25A, BC1.2, PD2.0/3.0, QC2.0/3.0, FCP, SCP multiple protocols.
(For Macbook Air/13, Macbook Pro 13/15/16
Huawei Matebook E/12/X13/XPRO
Thinkpad, HP, ASUS, Dell and almost all laptops with USB-C ports)
