Beskrivelse
Expected reading time: 4–5 min
Key features
- 4-Light Kit of 4ft (120cm) 27W RGBWW Full Color LED Pixel Bars
- 96 Individual Pixels (Lighting Zones)
- Infinite Blending Design to Reduce Visible Gaps When Connecting Multiple Lights
- All New Protective Hard Case Design for Easy Transportation
- Approx. 80 Min Battery Life at Max Output (59.2Wh)
High-performance Full HD/UHD Monitoring

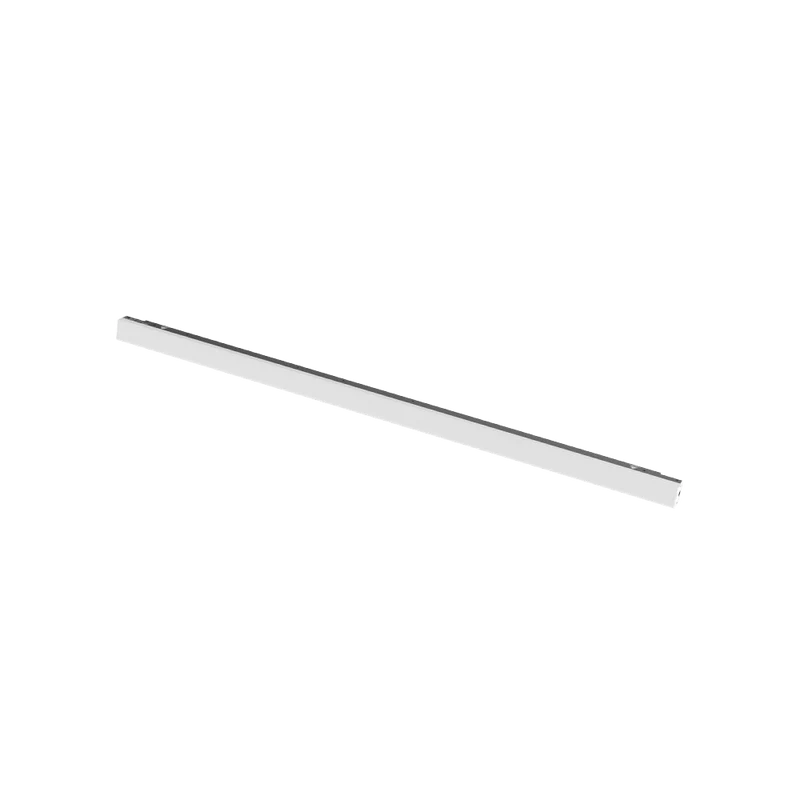

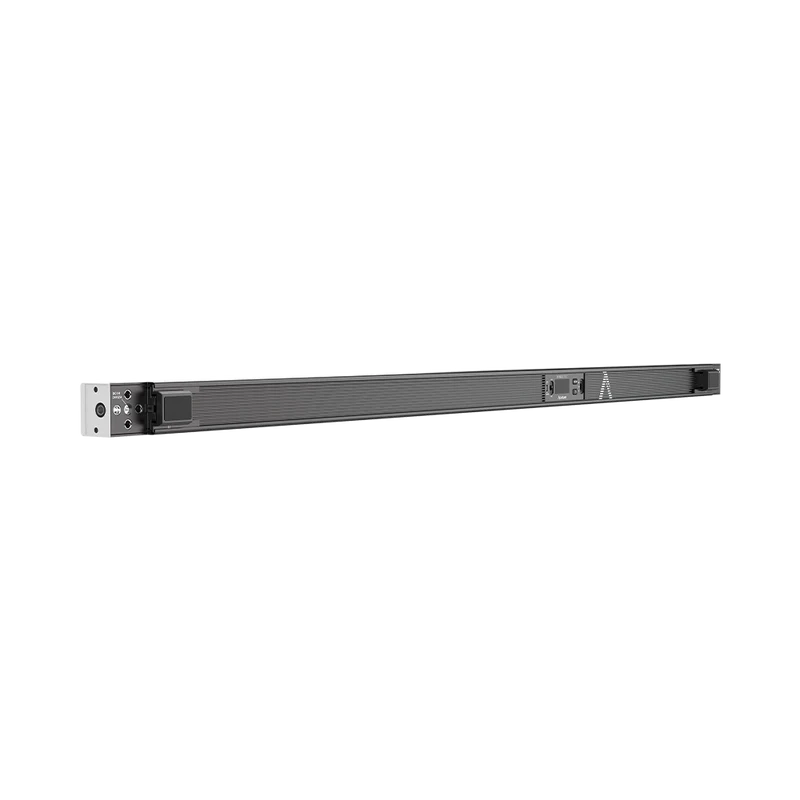

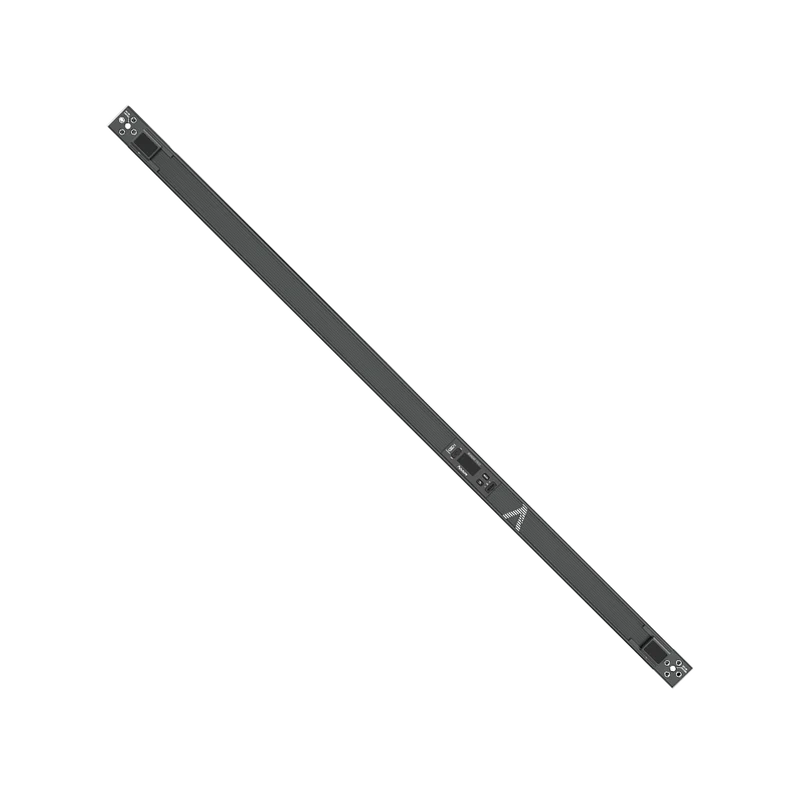

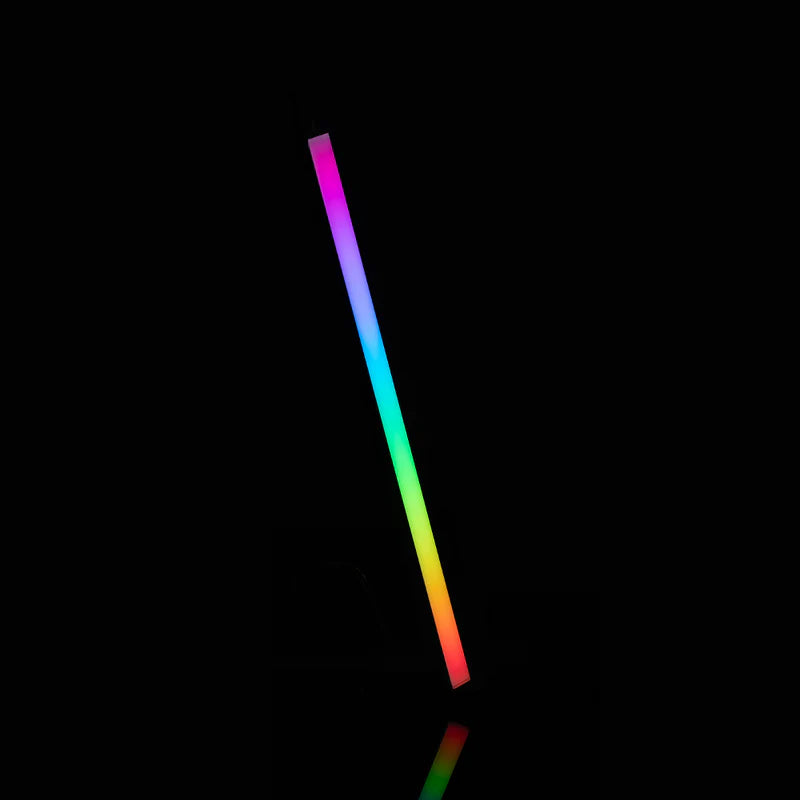

The INFINIBAR PB12 is a 4ft RGBWW pixel bar designed for both creative and practical lighting setups. Its flat, edge-to-edge design allows multiple units to be joined with no visible gaps, opening unique possibilities for both on-set and in-frame lighting.
[Continues below the image↓]
Versatile input formats and workflow flexibility
With 96 individually addressable pixels per bar, you can create smooth color and effect transitions via Sidus Link or Sidus Link Pro, and integrate into professional workflows with LumenRadio CRMX. For fixed setups, wired DMX control is supported via the Active USB-C to 5-pin DMX adapter.
[Continues below the image↓]
HDR, LUTs and advanced image controls
Magic Infinity FX enables up to 42ft of continuous pixel mapping, allowing dynamic color fades or intricate animation patterns. CCT is adjustable from 2,000K–10,000K with green/magenta shift, making it easy to match any existing lighting environment.
[Continues below the image↓]
Compact, portable and field-ready
The PB12 can be mounted using the included rail/clamp system, its built-in neodymium magnets, or via the 1/4"-20 mounting points. The built-in battery offers complete mobility, while AC power ensures continuous operation.
[Continues below the image↓]
Designed for broadcast, OB trucks and post production
From simple linear arrays to complex 3D structures, the PB12 is ideal for broadcast studios, music videos, and high-end commercial work. Its robust build and precise color reproduction guarantee professional results on every production.
[Continues below the image↓]
Pro-level signal tools built-in
With a CRI of 96, TLCI of 98, and SSI (Tungsten) of 85, the PB12 delivers top-tier color quality. For even more control, optional accessories such as the softbox and 45º fabric light control grid can be attached without tools.
[Continues below the image↓]

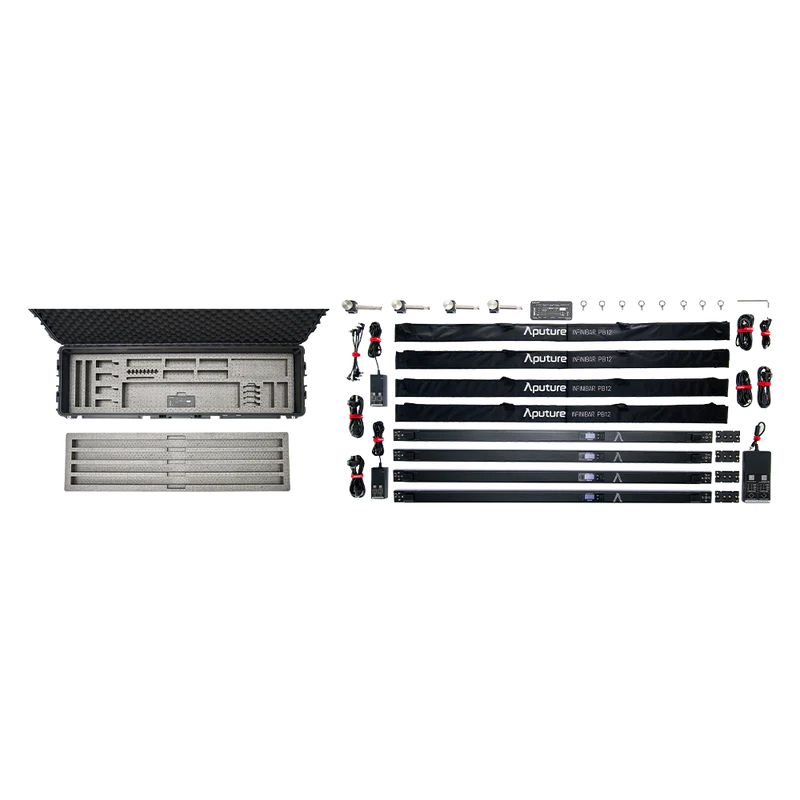

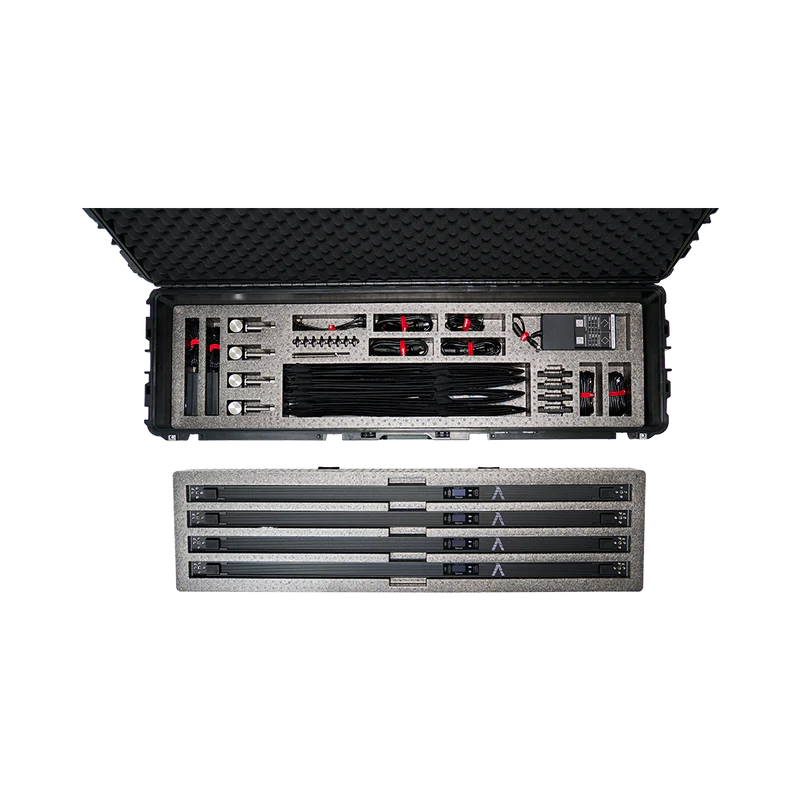

📦 What’s in the Box?
Included accessories and components:
-
4x INFINIBAR PB12
-
1x 330W DC Power Adapter
-
2x 48W DC Power Adapter (3m)
-
3x AC Locking Power Cable (1.5m)
-
4x 5.5mm DC Barrel Male to Male Power Cable (20cm)
-
1x 5.5mm DC Barrel 4-Way Splitter Cable
-
4x INFINIBAR Clamp to Baby Pin Adapter
-
4x INFINIBAR Straight Connector
-
8x ¼-20” Eyebolt
-
1x 5mm Hex Wrench
-
4x INFINIBAR PB12 45º Light Control Grid
-

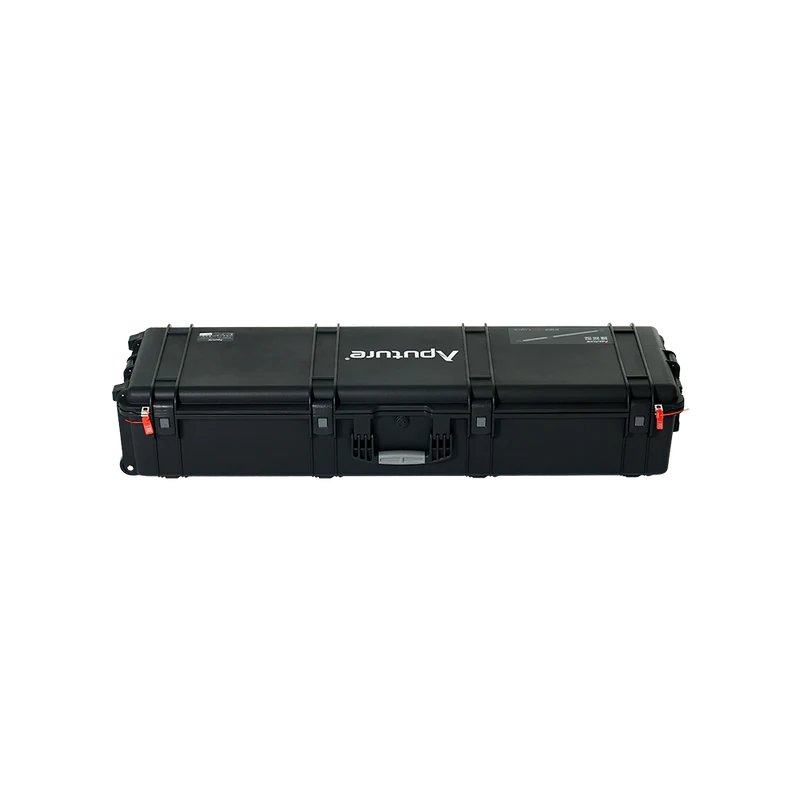

1x Hard Case
[Continues below the image↓]
|
Specification |
Value |
|---|---|
|
CCT |
2,000K – 10,000K |
|
CRI |
96+ |
|
TLCI |
98+ |
|
CQS |
96 |
|
SSI (D56) |
74 |
|
SSI (Tungsten) |
85 |
|
TM-30 RF (Avg.) |
94 |
|
TM-30 RG (Avg.) |
103 |
|
Color Chipset |
RGBWW |
|
Light Engine (Single Pixel) |
RGBWW |
|
Light Engine (Multi Pixel) |
RGB |
|
Beam Angle (Half-Peak) |
120º |
|
Lumens |
2,077lm |
|
Max Power Output |
27W |
|
Max Power Consumption (Fixture) |
36.5W |
|
Max Power Consumption (Power Supply) |
40W |
|
Operating Voltage & Current (Fixture) |
24V, 1.8A |
|
Operating Voltage & Current (Power Supply) |
100V–240V 50/60Hz, 1.5A |
|
Battery Capacity |
7.4V, 8000mAh, 59.2Wh |
|
Battery Life |
Approx. 80 min @ Max Output |
|
Charge Time |
Approx. 120 min (24V/2.67A) |
|
Pixel Mapping |
96 pixels |
|
Operating Temperature |
-10ºC to 45ºC / 14ºF to 113ºF |
|
IP Rating |
IP20 |
|
Screen Type |
OLED |
|
Firmware Upgradeable |
Sidus Link, USB-C |
|
Cooling Method |
Passive Cooling |
|
Mounting |
INFINIBAR Rail |
|
LED Lifetime (L70) |
50,000 hours |
|
Color Shift Over Lifetime |
2% over 6,000 hours |
|
Certifications |
CE, FCC, KC, NCC, ROHS, RCM, ICES, UKCA, PSE |
|
Control Methods |
Sidus Link App, DMX/RDM, LumenRadio CRMX |
|
Wireless Range (Bluetooth) |
≤80m / ≤262.5ft |
|
Wireless Range (LumenRadio) |
≤100m / ≤328.1ft |
|
Dimensions – Fixture |
120.4 × 4.5 × 4.3 cm / 47.4 × 1.77 × 1.69 in |
|
Dimensions – Fixture + Spacer |
120.4 × 4.5 × 5.2 cm / 47.4 × 1.77 × 2.05 in |
|
Dimensions – AC Power Supply |
12.0 × 5.3 × 3.2 cm / 4.7 × 2.1 × 1.3 in |
|
Dimensions – INFINIBAR Clamp |
12.2 × 5.5 × 4.0 cm / 4.8 × 2.2 × 1.6 in |
|
Dimensions – Case |
127.7 × 13 × 12.5 cm / 50 × 5.1 × 4.9 in |
|
Weight – Fixture |
1.96 kg / 4.31 lbs |
|
Weight – Fixture + Spacer |
2.09 kg / 4.61 lbs |
|
Weight – AC Power Supply |
0.49 kg / 1.08 lbs |
|
Weight – INFINIBAR Clamp |
0.27 kg / 1.08 lbs |
