FM-U245HDR 24" HB UHD FIELD MONITOR W/FLIGHTCASE & VESA MOUNT

› 23.8-inch LCD Panel, 3840×2160 resolution
› 1000nits high bright LED backlight
› HLG/PQ/S-log3 HDR, Payload ID auto setting
› 12GSDI 4-in 4-out, 8K input ready, HDMI®2.0 input
› Quad-view / Pic-by-Pic / Pic-in-Pic
› 3DLUT Auto Self-calibration without PC
› 18-bit and Zero latency video process
› Built-in Multi camera Delog LUTs
› 13× User 3DLuts Cubes Upload by USB-A
› Waveform / Vector Scope / CIE Scope / Histogram
› Eye Pattern / Focus Assist / Zebra / False Color
› Anamorpic De-squeeze 1.33/1.5/1.6/1.8/2/ MAG
› Audio meters / Lissajous / 5.1&7.1 Surround pattern
› On-board V-mount battery plate
› Shipping with flight case and various accessories
› Junior & Baby double riser stand mounting

23.8” 4K 1000nits HDR

Field Production Monitor

FM-U245HDR is a 23.8-inch 4K monitor for   lmset or live productions. The 1000nits high bright display panel allows a clear view even under direct sunlight, and HDR enabled.

The pre-installed  ight case and all around protections are for convenient carrying away and  eld setup.

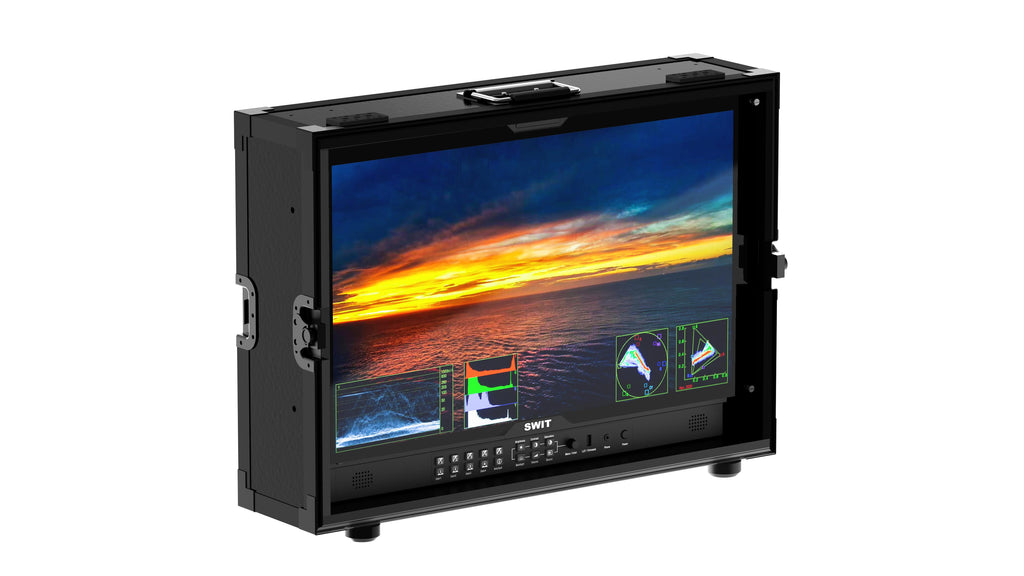

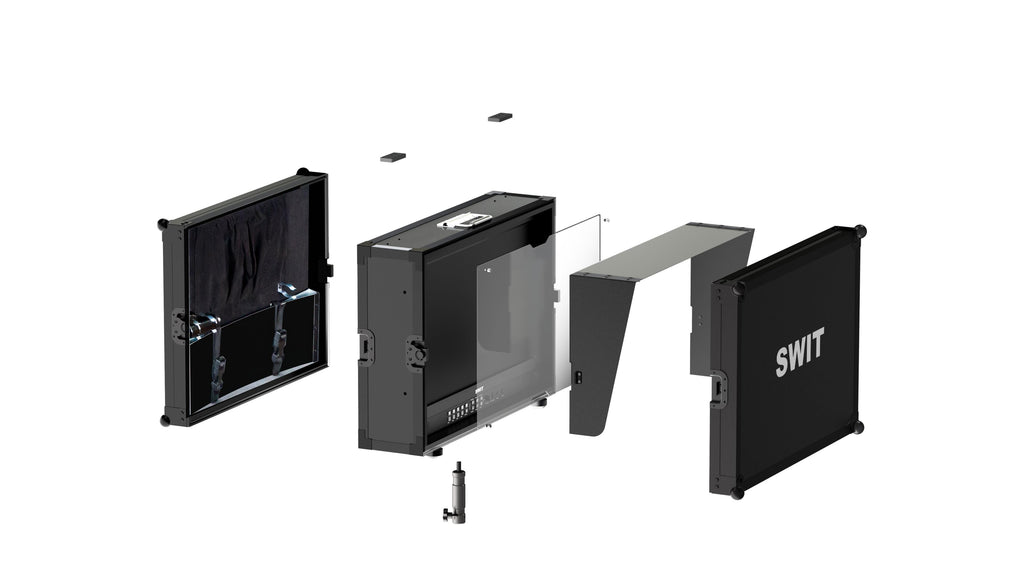

Flight Case Setup

The monitor is pre-installed with an all around protective  ight case, and provided with screen glass, sun hood, top 2× cheese plates, and bottom detachable light stand mounting adaptor.

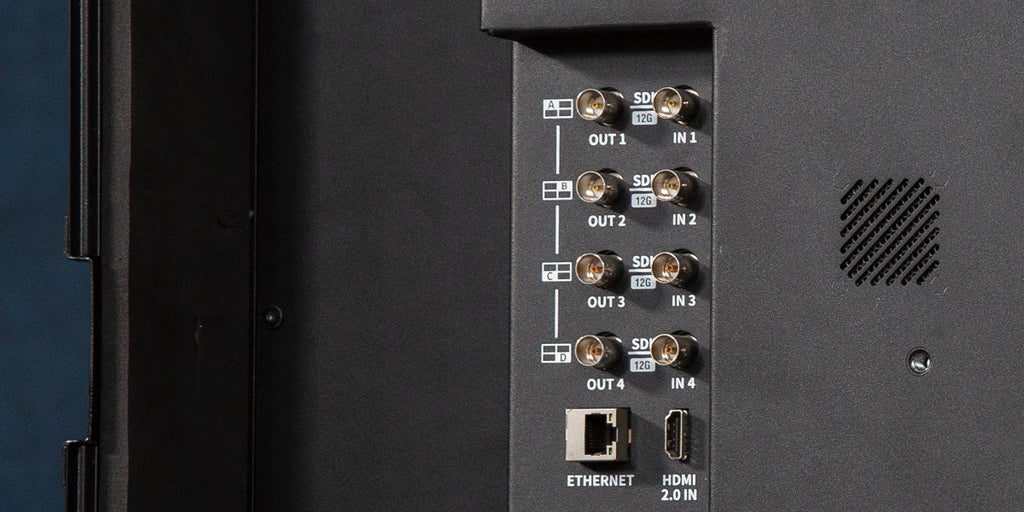

All 4K Interfaces

FM-U245HDR supports various 4K inputs including:
- 12G-SDI 4K in and out
- 4× 12G-SDI Quadlink 8K in and loop
- 4× 3G-SDI Quadlink 4K in and loop
- HDMI® 2.0 4K input

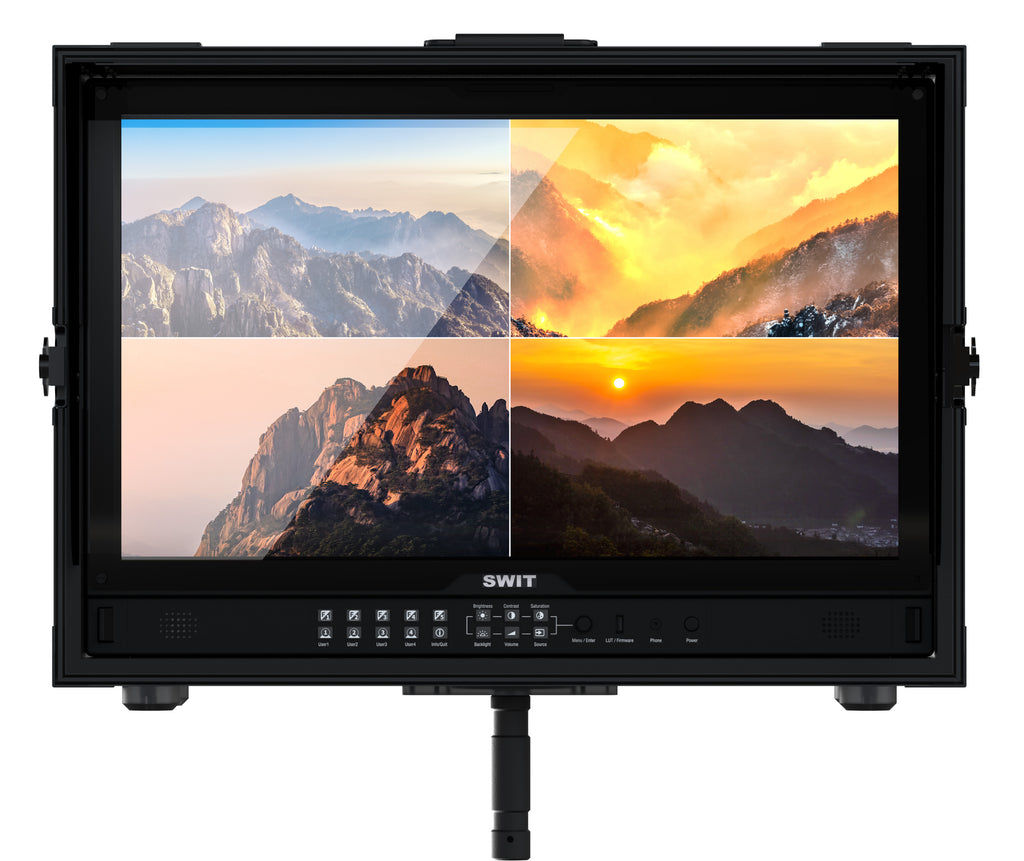

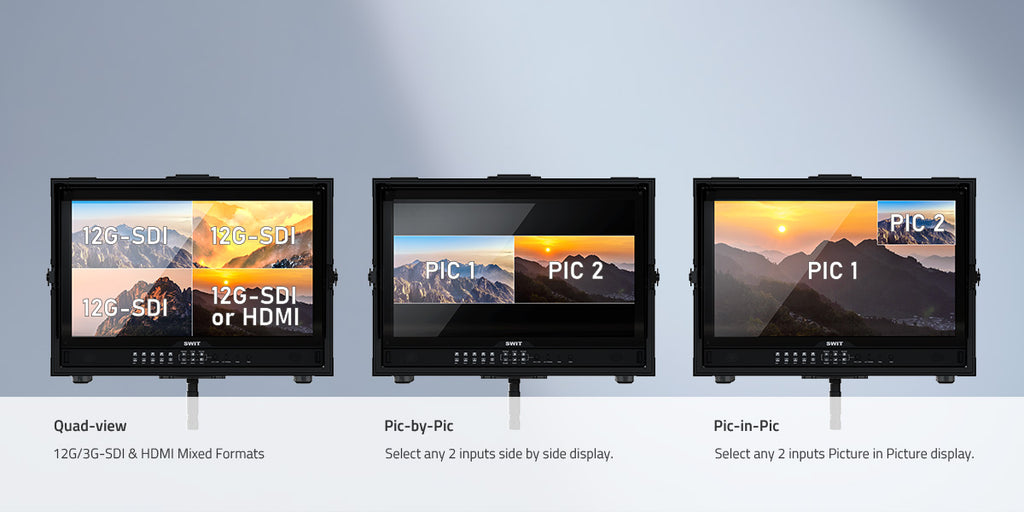

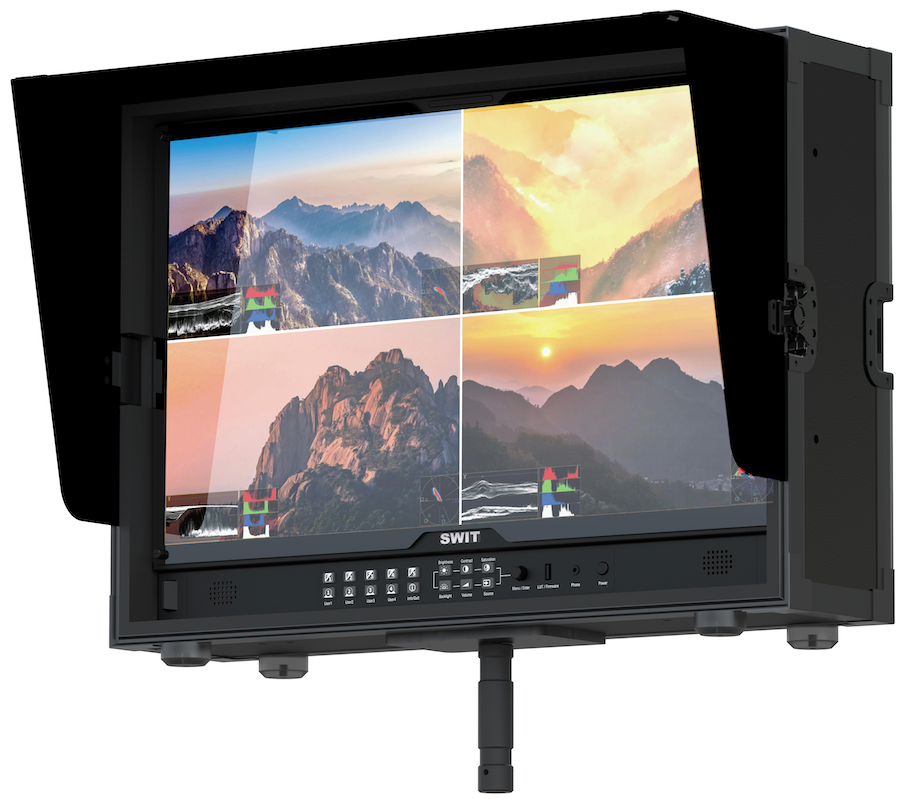

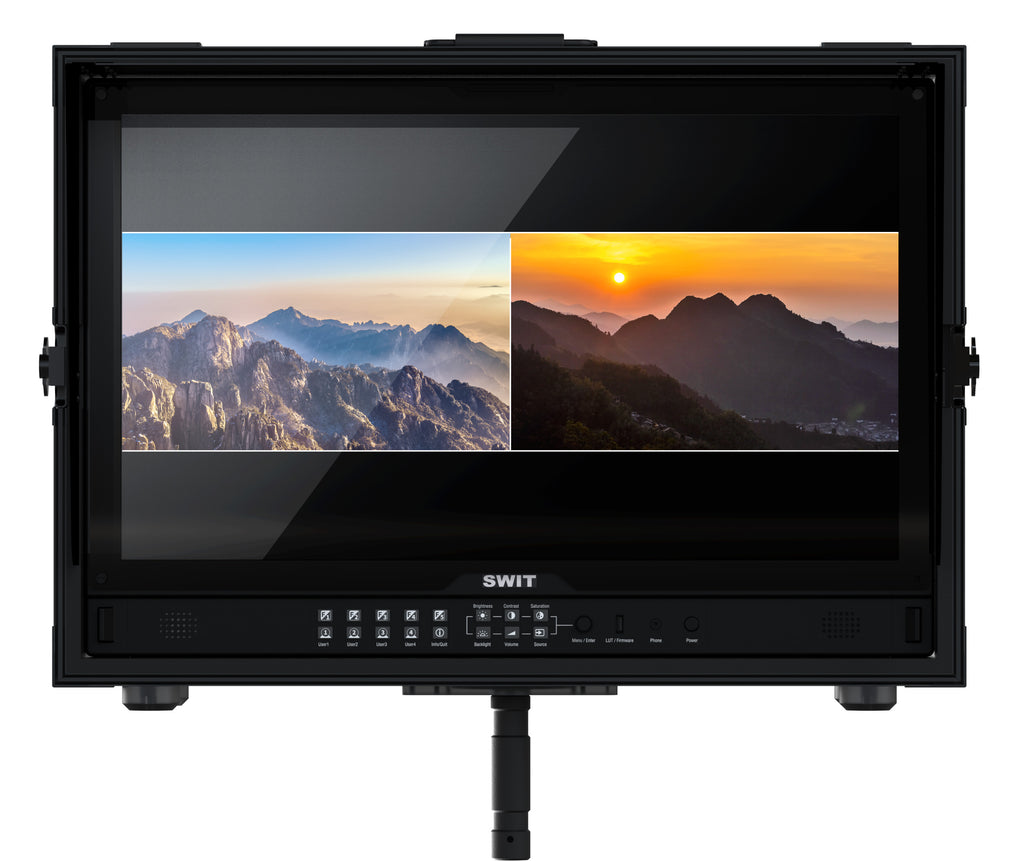

Multiview Display Mode

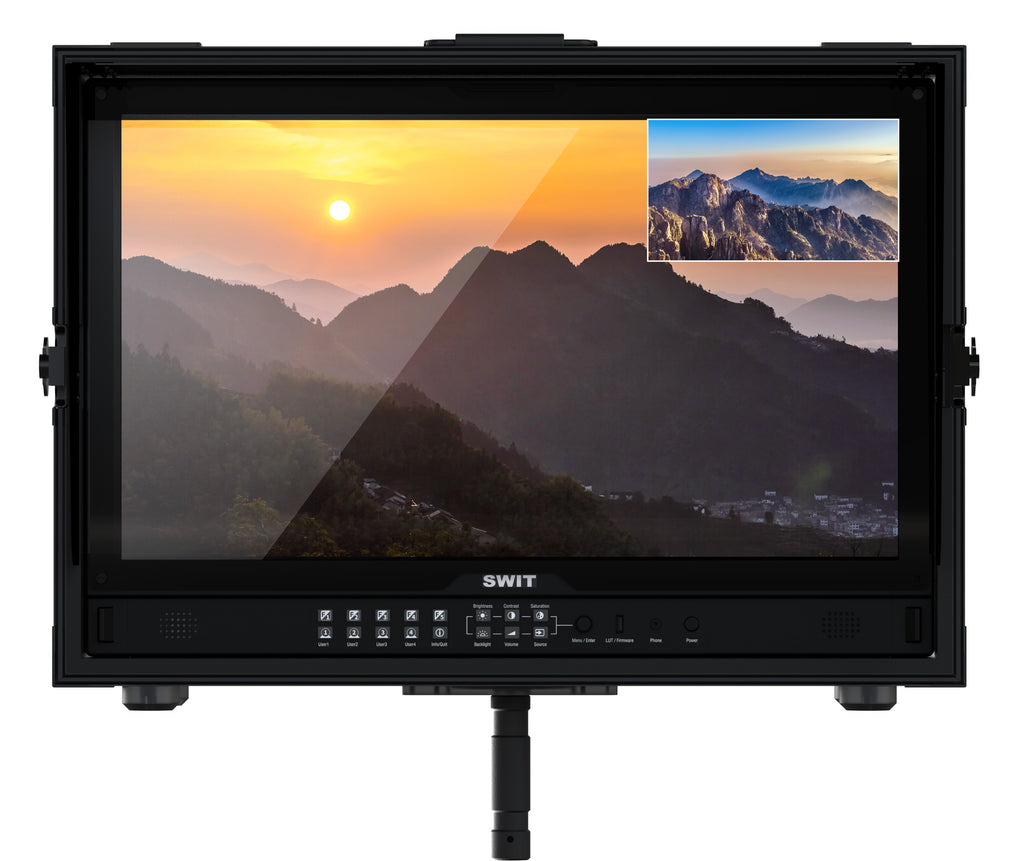

FM-U245HDR supports 4x input video of mixed formats Quadview display, or any 2x inputs Pic-by-Pic or Pic-in-Pic view. You can select HDR/SDR gamma, color gamut independently for each input.

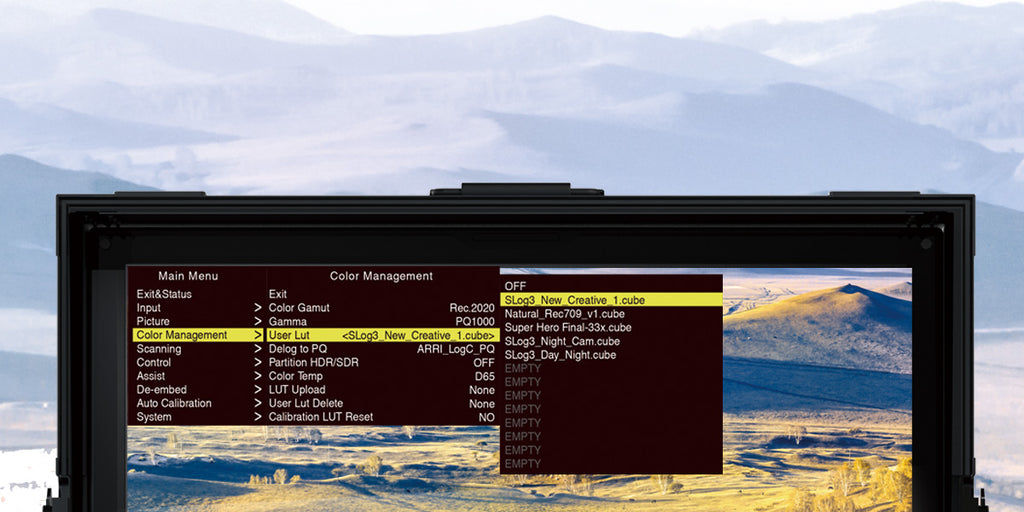

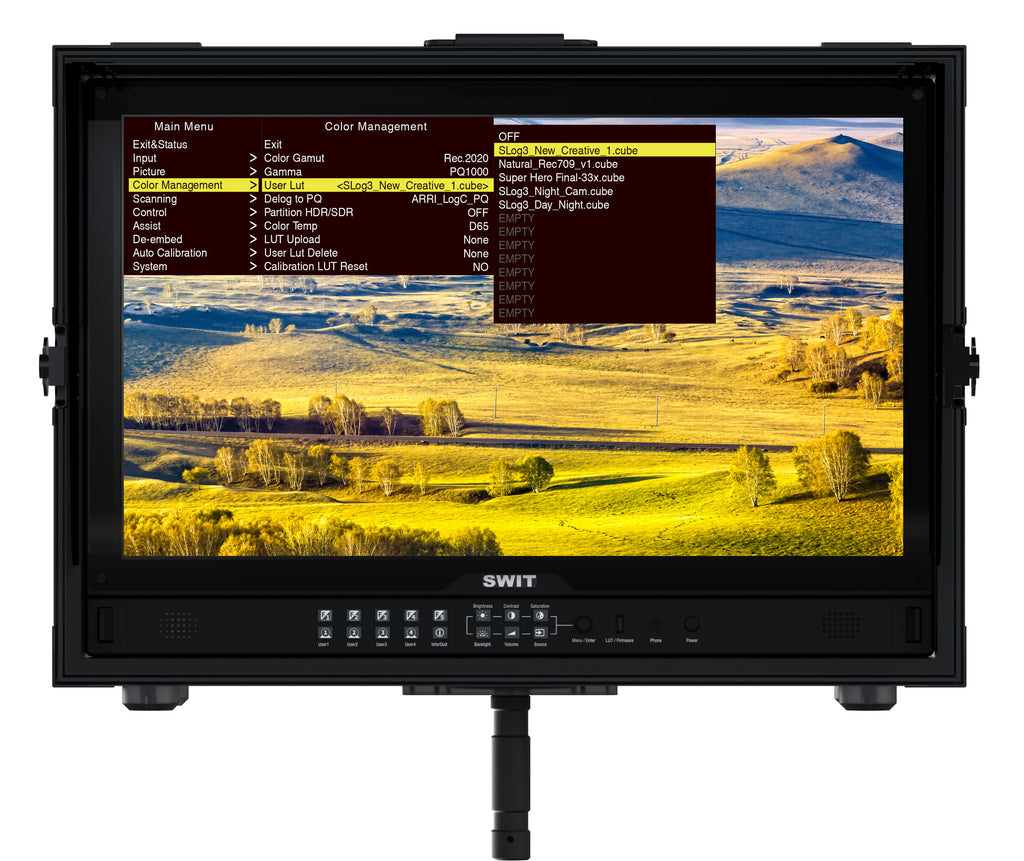

Color Management, Delog and User Lut Upload

FM-U245HDR supports SDR Gamma 1.8/2.2/2.4/2.6 and HDR Gamma HLG1000, PQ1000, S-Log3, 2.4HDR selestion, and has built-in multiple camera Delog Luts, and support 13x User 3DLuts upload by front USB-A socket.

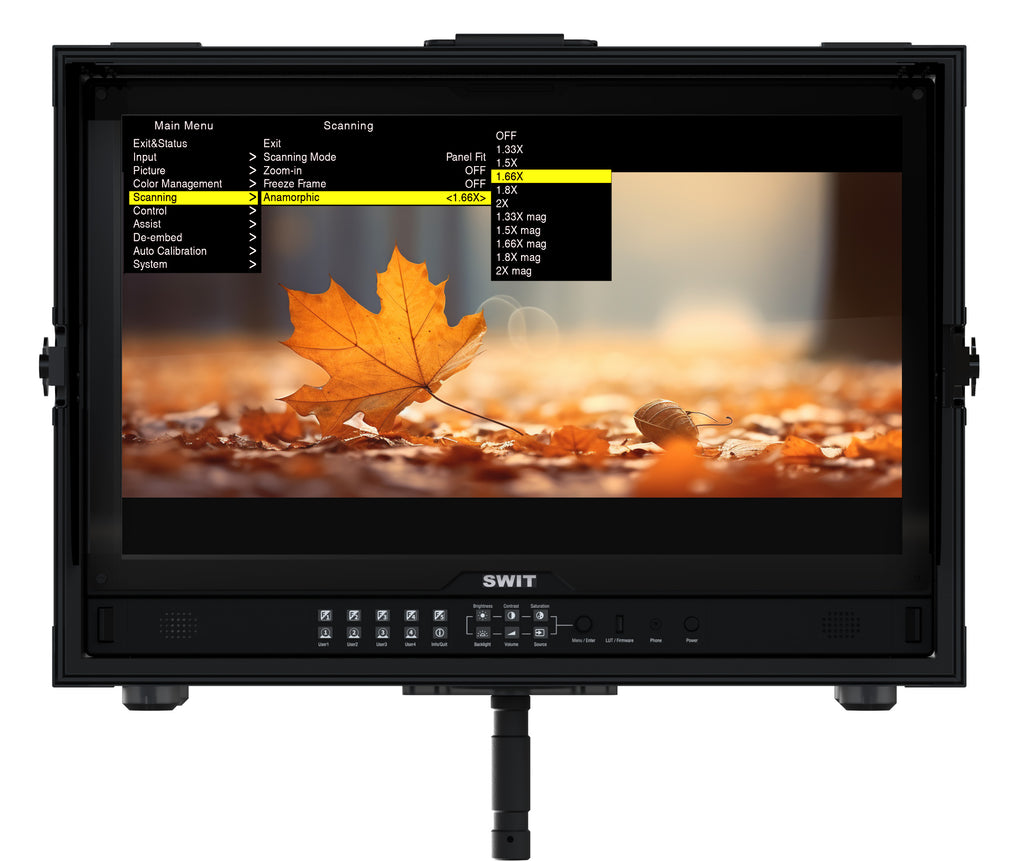

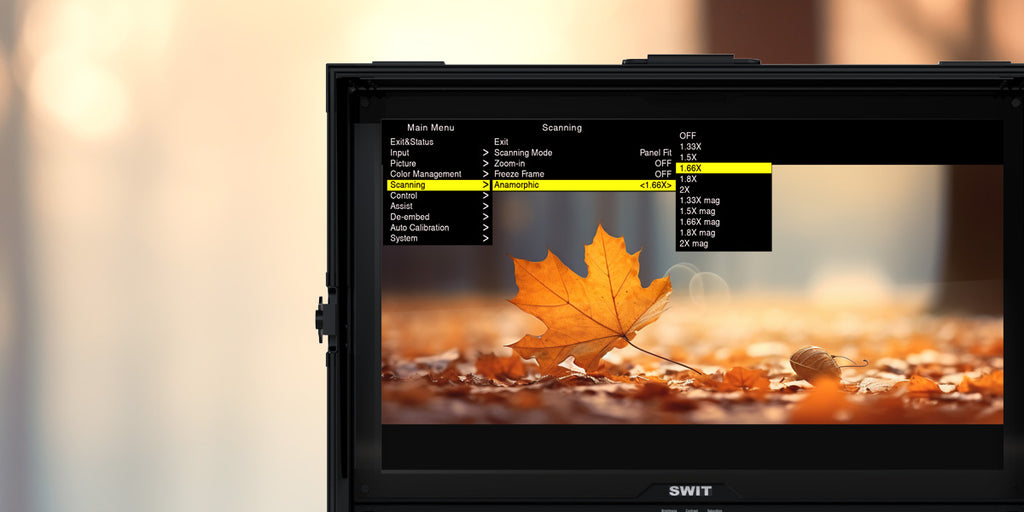

Anamorphic De-squeeze

FM-U245HDR supports Anamorphic lens correction at 1.33x, 1.5x, 1.66x, 1.8x, 2x and mag crop modes, for cinematographers to correct the unique horizontal squeeze and aspect ratio distortions in real-time.

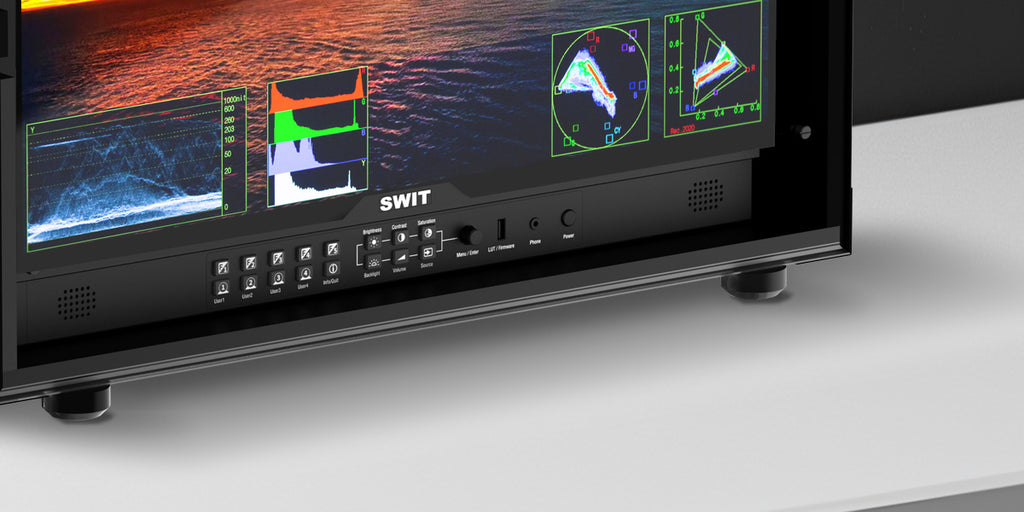

Professional Video Assist Tools

The FM-U245HDR monitor has featured waveforms, histogram, vector scope, CIE scope, false color, focus assist, zebra stripes, and eye pattern for professsional video quality monitoring assistance.

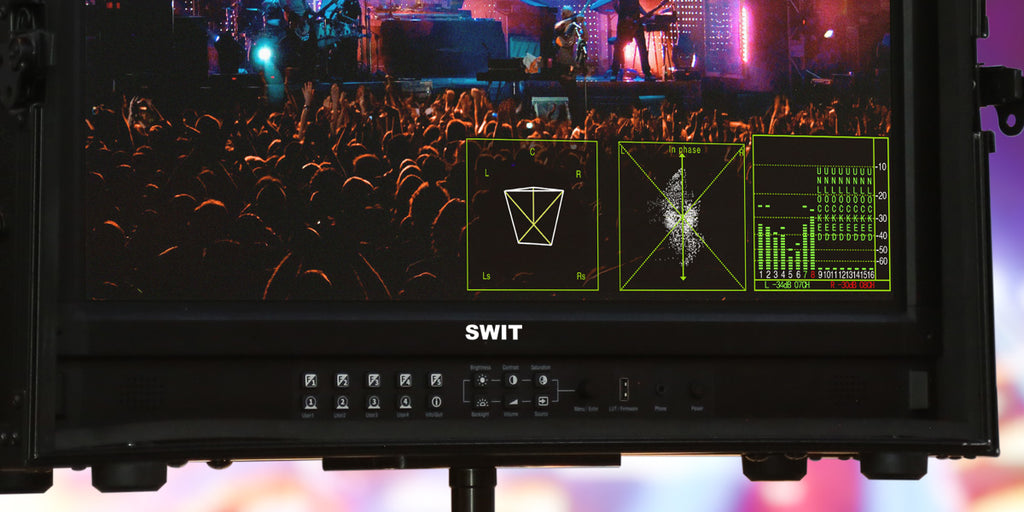

Professional Audio Tools

Displays Max 16-ch embedded audio meters, and allows to select any 2 channels to output via speaker or 3.5mm headphone socket. Besides, the monitor also support Lissajous phase pattern and 5.1/7.1 surround sound patterns for professional audio monitoring.

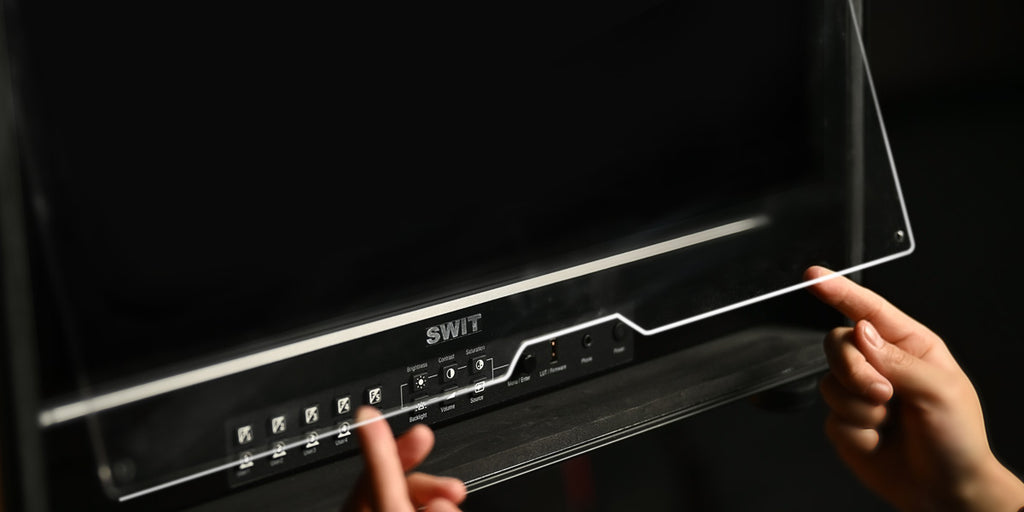

Equipped with Screen Protector

The FM-U245HDR monitor provides an acrylic screen protector, with high transparency and anti-re ection.

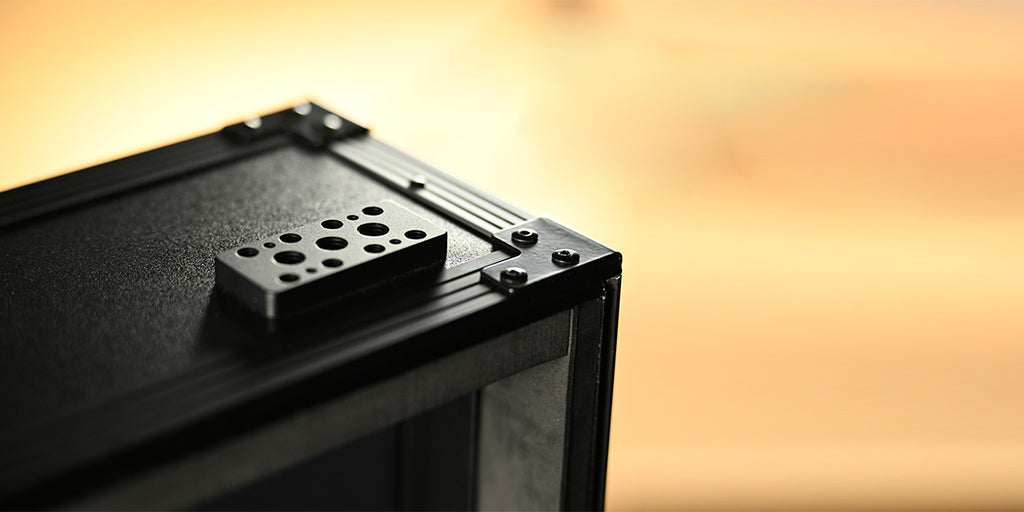

2× Top Cheese Plates

On the top of the  ight case, 2× cheese plates are provided to install accessories like wireless video receiver, with multiple 1/4” and 3/8” screw threads.

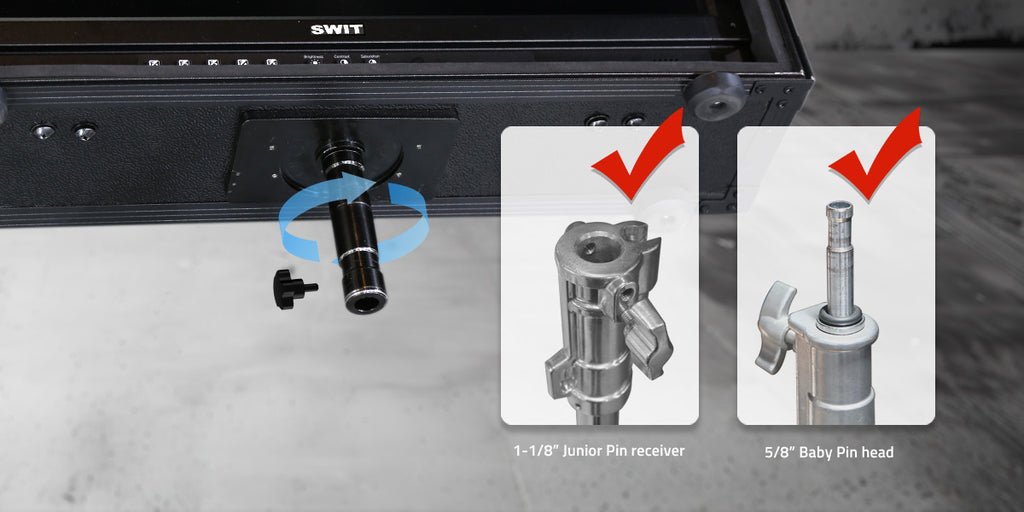

Light Stand Install Rod

The monitor provides with a detachable light stand rod, to install at the bottom of the  ight case, compatible with both 1-1/8” junior pin and 5/8“ baby pin light stands, for convenient on-site  lm/video production setup.

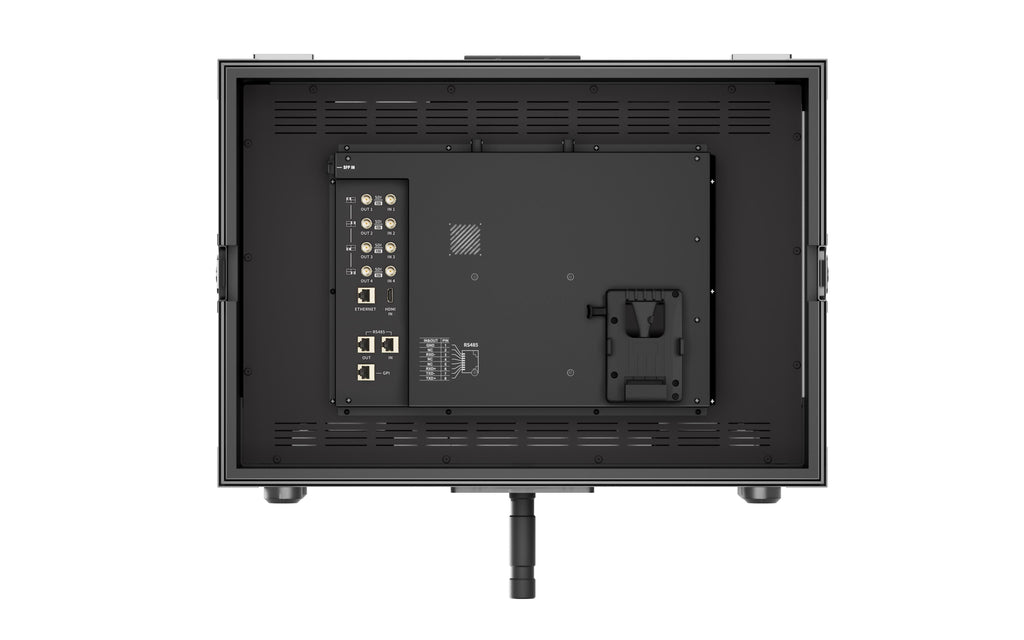

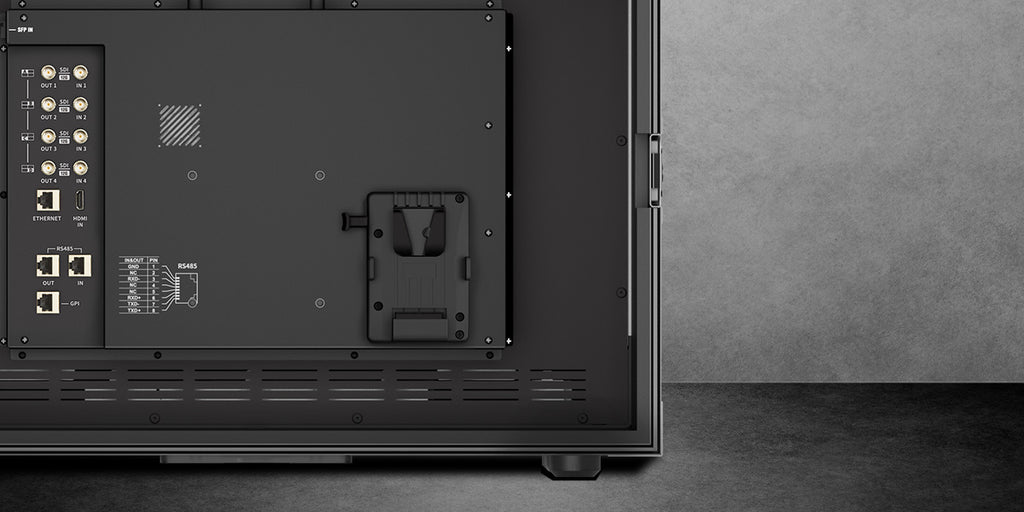

Power Supply

The FM-U245HDR monitor has equipped an on-board V-mount plate on the rear panel, and support AC 100-240V 50/60Hz and
4-pin XLR DC 12-17V power supply.

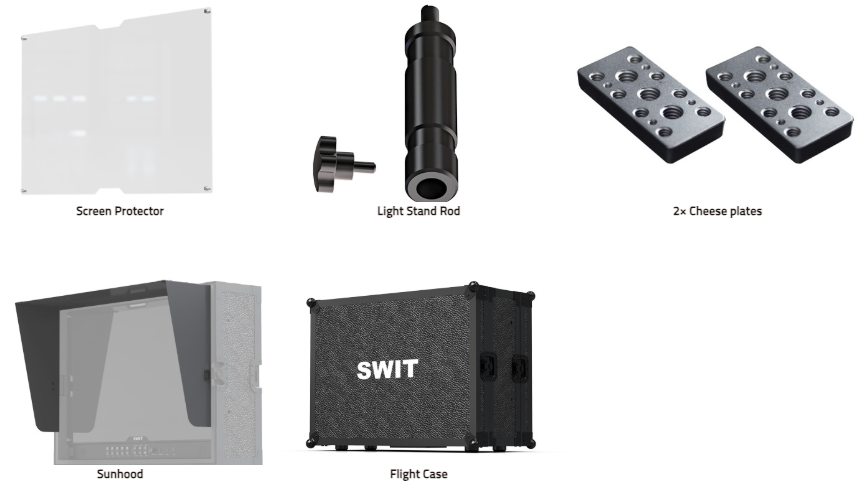

• What’s in box?
