- 8.29MP, 1" CMOS Sensor
- Up to UHD 4K30 Video Recording
- Mini-HDMI and 3G-SDI Outputs
- Integrated 15x Optical Zoom Lens
- Dual XLR and Mic/Line Audio Input
- 5-Axis Optical Image Stabilization
- Dual-Pixel CMOS Autofocus Feature
- Dual SD Relay and Simultaneous Recording
- DIG!C DV 6 Processor
- 3" Touchscreen LCD, Tiltable Viewfinder
Beskrivelse

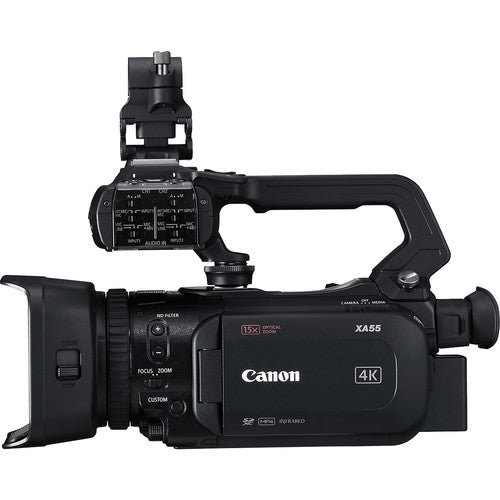

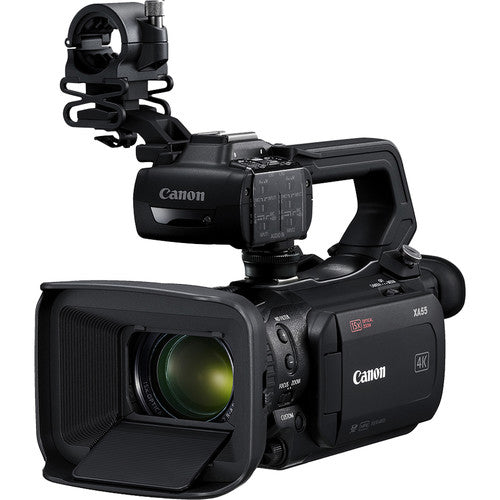

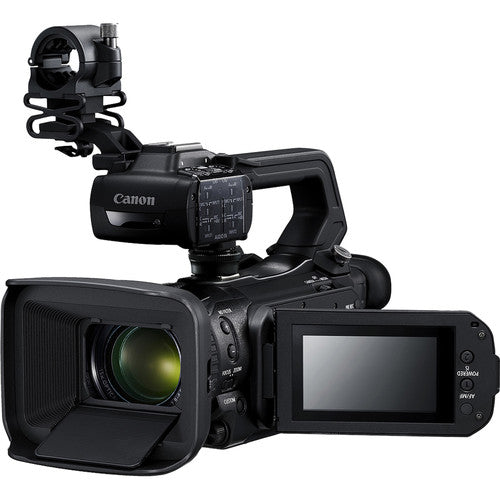

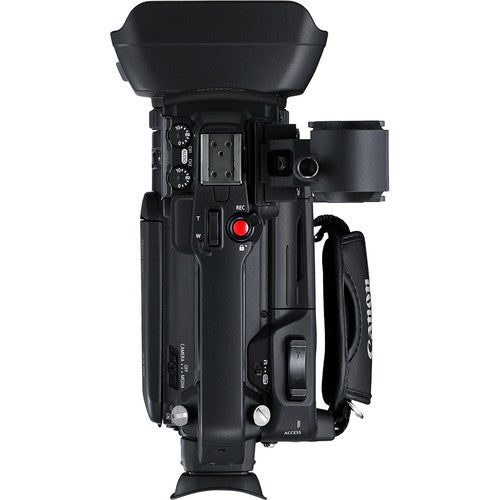

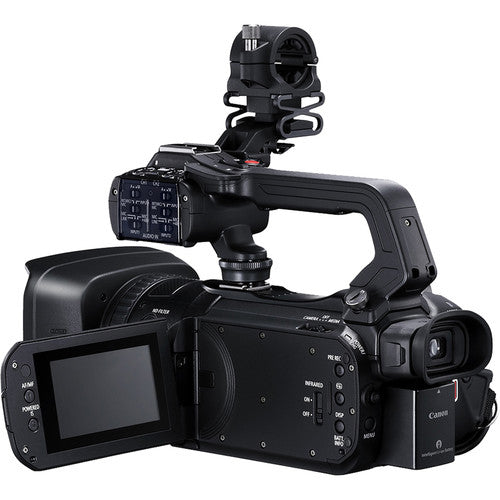

The Canon XA55 Professional UHD 4K Camcorder is a compact, lightweight camera featuring UHD 4K capture, a 1" CMOS sensor, two XLR audio inputs, and one mini-HDMI, and one BNC 3G-SDI output which fits right into the ENG category for documentary or journalism-style productions.
The XA55's optics include an integrated 15x HD optical zoom and a nine-bladed circular iris for more natural highlights, and wide DR gamma support for low-light recording.
The camera's pro-style features include Dual Pixel and Contrast autofocus, fast- and slow-motion recording, full manual control, optical and electronic image stabilization, a 3" touchscreen LCD, user-assignable buttons, infrared mode, and a DIG!C DV 6 image processor with high sensitivity and low noise.
The XA55 also has display monitoring features such as zebra, color bars, and test tone and a built-in neutral density filter mechanism offering ND4, ND16, and ND64 options.
The camera records UHD 4K30 and Full HD 1080p60 captured to dual SD card slots, and outputs to mini-HDMI and 3G-SDI ports.
The dual SD card slots allow for automatic switching from one card to another, as well as simultaneous recording to both. The camera can output up to 1920 x 1080p 10-bit 4:2:2 video at 59.94 fps via its mini-HDMI and 3G-SDI outputs.
On the audio side, the XA55 features up to four channels of LPCM audio with manual/automatic recording levels, two XLR inputs with phantom power, and a 3.5mm stereo mini input.
It features a built-in stereo microphone as well as a headphone jack. The camera's functions can also be controlled by the separately available RC-V100 remote control.
Features
- 8.29MP, 1" CMOS sensor
- Integrated 15x optical zoom lens
- 5-axis optical image stabilization
- Dual-pixel CMOS autofocus feature
- UHD 4K30 fps, HD 59.97 fps recording
- Dual XLR, 3.5mm mic/line audio inputs
- MP4 recording
- DIG!C DV 6 processor
- Two SD memory card slots
- Mini-HDMI and 3G-SDI outputs
- 1/4"-20 tripod mounting thread
Specifikationer
| Image Sensor | 1-Chip 1" CMOS Sensor |
| Sensor Resolution | 4268 x 3148 (13.4 MP) |
| Effective Sensor Resolution | 3840 x 2160 (8.29 MP) |
| Minimum Illumination | 1.7 Lux at 1/30 Shutter Speed 0.1 Lux at 1/2 Shutter Speed |
| White Balance Range | 2000 to 15,000K |
Lens
| Focal Length | 8.3 to 124.5mm |
| 35mm Equivalent Focal Length | 25.5 to 382.5mm |
| Optical Zoom Ratio | 15x |
| Maximum Aperture | f/2.8 to 4.5 |
| Minimum Focusing Distance | Wide: 0.4" / 1.0 cm Entire Zoom Range: 23.6" / 60.0 cm |
| Filter Size | 58 mm |
| Image Stabilization | Optical Digital |
| Focus Control | Autofocus Manual Focus |
Camera
| Shutter Speed | 1/1 to 1/2000 sec |
| Built-In ND Filter | Mechanical Filter Wheel with 2 Stop (1/4), 4 Stop (1/16), 6 Stop (1/64) ND Filters |
| Built-In Microphone Type | Stereo |
| Media/Memory Card Slot | Dual Slot: SD/SDHC/SDXC (UHS-I) |
Recording
| Recording Modes | H.264/MP4 4:2:0 8-Bit: 3840 x 2160p at 23.98/24/29.97/30 fps 1920 x 1080p at 23.98/24/29.97/30/59.94/60 fps (35 to 45 Mb/s) 1280 x 720p at 59.94/60 fps (8 Mb/s) XF-AVC 4:2:0 8-Bit: 3840 x 2160p at 23.98/24/29.97/30 fps 1920 x 1080p at 23.98/24/29.97/30/59.94/60 fps |
| Audio Recording | MP4: 2-Channel 16-Bit AAC Audio MP4: 4-Channel 16-Bit LPCM Audio XAVC: 4-Channel 24-Bit LPCM Audio |
| IP Streaming | Yes |
Interfaces
| Video Connectors | 1 x Mini-HDMI (HDMI 2.0) Output 1 x BNC (3G-SDI) Output |
| Audio Connectors | 2 x 3-Pin XLR Mic/Line Level (+48 V Phantom Power) Input 1 x 1/8" / 3.5 mm Stereo Headphone Input 1 x 1/8" / 3.5 mm Stereo Mic Level Input |
| Other I/O | 1 x USB Mini-B Output 1 x 2.5 mm Input |
Display
| Display Type | Articulating LCD |
| Size | 3.0" |
| Resolution | 460,000 Dot |
EVF
| EVF Display Type | LCD |
| Screen Size | .24" |
| EVF Resolution | 1,560,000 Dots |
Power
| Battery Type | Canon BP-8 Series |
| Power Connectors | 1 x Proprietary (8.4 VDC) Input |
Environmental
| Operating Temperature | 32 to 104°F / 0 to 40°C (Recommended) |
| Storage Temperature | 23 to 113°F / -5 to 45°C |
| Operating Humidity | 85% |
| Storage Humidity | 60% |
General
| Accessory Mount | 1 x Cold Shoe Mount |
| Tripod Mount | 1/4"-20 Female |
| Dimensions | 8.4 x 4.3 x 3.6" / 21.34 x 10.92 x 9.14 cm (Without Protrusions) 10.4 x 4.9 x 3.6" / 26.42 x 12.45 x 9.14 cm (With Protrusions) 10.4 x 8.5 x 5.5" / 26.42 x 21.59 x 13.97 cm (With Protrusions) |
| Weight | 2.1 lb / 952.54 g |
| Warranty Length | Limited 1-Year Warranty |
