Beskrivelse

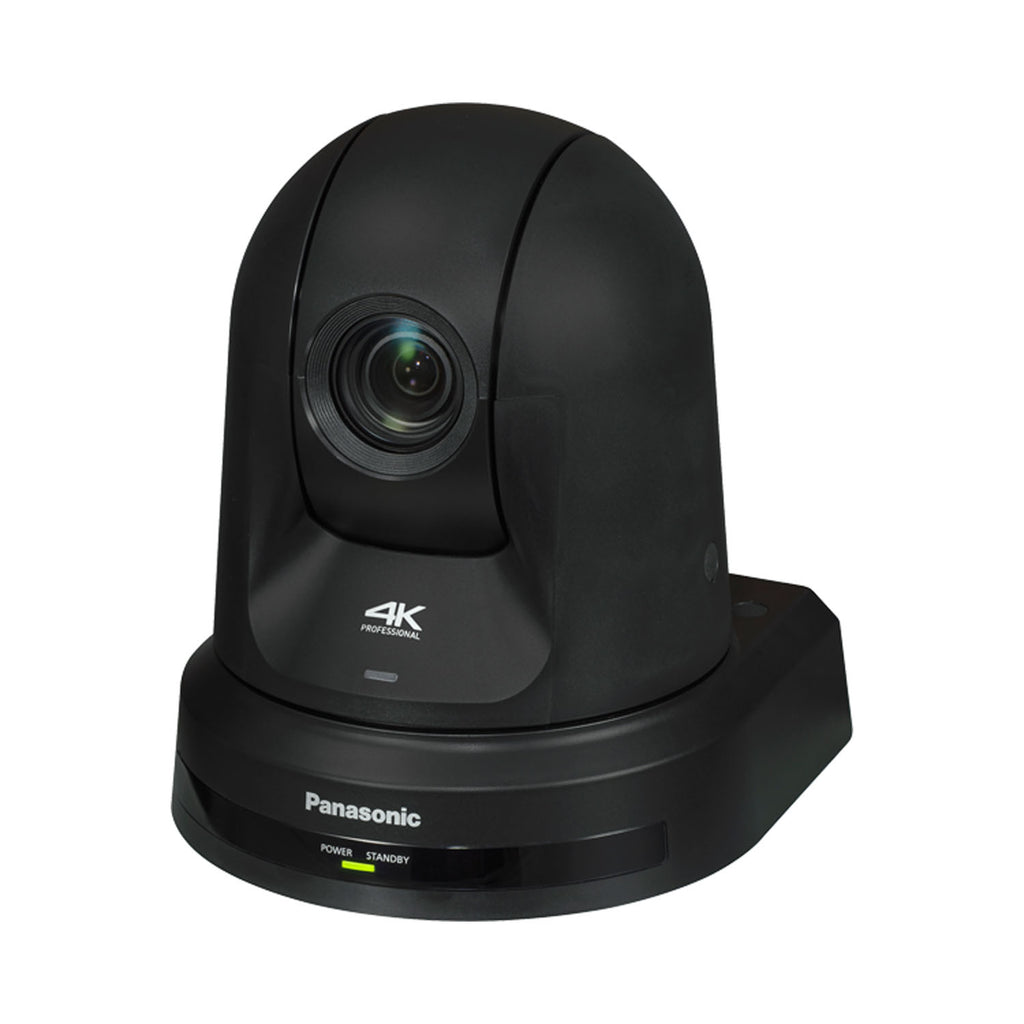

Panasonic AW-UE30KEJ 4K Integrated Camera Imaging and outputs
The integrated lens offers a 35 mm–equivalent focal range of approximately 25–500 mm. UHD output up to 2160/29.97p or 25p is available via HDMI (4:2:2, 10-bit). For USB workflows, the USB-C device port supports UVC/UAC. A 3.5 mm mic/line input with plug-in power allows audio embedding on HDMI and IP streams. i.Zoom extends to 23x in UHD and 30x in FHD, and a digital extender provides 1.4x/2x options. Minimum illumination is 3 lx (F1.8, 59.94p, 50 IRE, 42 dB).
Network, control, and PTZ performance
The camera streams over IP in JPEG (MJPEG), H.264, and H.265 at up to 1080p, with selectable frame rates for 50/60 Hz regions. Supported protocols include RTSP/RTP, RTMP/RTMPS, and SRT, with IPv4/IPv6 compatibility. Control is available over IP and RS-422, and PoE+ enables power and data over a single cable. The direct-drive pan/tilt mechanism provides smooth motion with a pan range of ±175°, a tilt range of −30° to +90°, and speed modes from precise moves up to 180°/s (Fast2). Operating noise is NC25 or less. A built-in auto-tracking function and optical image stabilization support presenter tracking and stable shots in typical conferencing and education environments.
Key features
1/2.5-type 4K MOS sensor; approx. 8.49 MP effective
HDMI output: UHD 2160/29.97p, 25p; HD formats up to 1080/59.94p and 50p
20x optical zoom; i.Zoom 23x (UHD) / 30x (FHD); digital extender 1.4x/2x
35 mm–equivalent focal length approx. 25–500 mm; horizontal angle of view 74.1° (wide) to 4.0° (tele)
IP streaming in JPEG (MJPEG), H.264, H.265 up to 1080p; protocols include RTSP/RTP, RTMP/RTMPS, SRT
USB-C device mode with UVC/UAC; 3.5 mm stereo mic/line input with plug-in power; audio embedding on HDMI/IP
Direct-drive PTZ: pan ±175°, tilt −30° to +90°; speed modes up to 180°/s (Fast2)
Minimum illumination 3 lx; scene files and gamma options including Normal, Cinema1/Cinema2, Still-Like
Power and control via PoE+; LAN 100/1000BASE-T; RS-422 control (RJ-45)
Dimensions approx. 160 × 192.1 × 166 mm; mass approx. 2.05 kg including ceiling bracket
